Go Zone Wheels - UCI approved carbon rims & wheels manufacturer with OEM/ODM services.

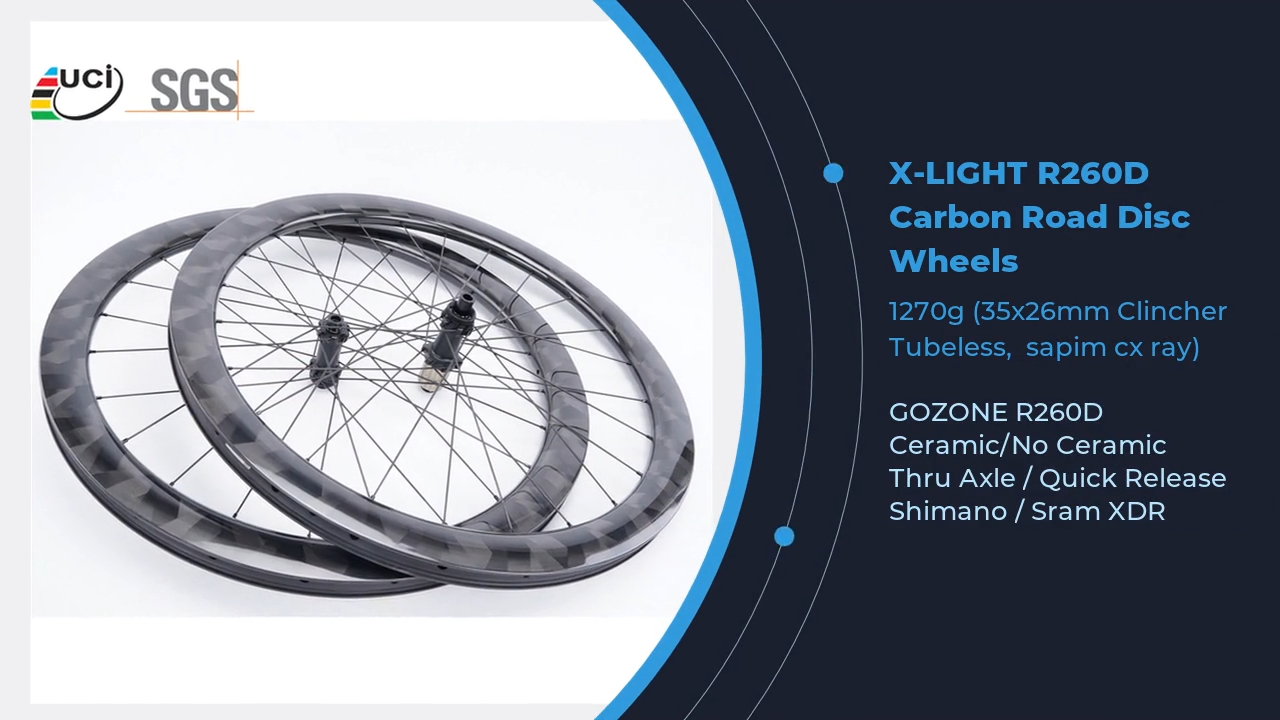

Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 1
Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 1

Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier

Factory Wholesale Customized 700c Road Carbon Wheels Disc Brake X Light Clincher Tubeless / Tubular Road Disc Wheelset GOZONE R260D  Ceramic / Common Bearings OEM / ODM Shimanano / Sram XDR  Center Lock Thru Axle / Quick Release UltraLight Wheel

1.

1270g (35x26mm Clincher Tubeless, sapim cx ray)

GOZONE R260D

Ceramic/No Ceramic

Thru Axle / Quick Release

Shimano / Sram XDR

2. X-Light Glossy / Matte

3. Clincher Tubeless / Tubular

Toray T800 Carbon

4.  Disc Brake 24/24 Holes (Or Customized)

5. Spokes: Pillar / Gozone / Sapim...

6. Nipples: Black / Siver / Red / Blue...

7. SGS(ISO) / UCI Approved

8. OEM & ODM Service


    oops...!

    no product data.

    Go to homepage

    Factory Wholesale Customized 700c Road Carbon Wheels Disc Brake X Light Clincher Tubeless / Tubular Road Disc Wheelset GOZONE R260D  Ceramic / Common Bearings OEM / ODM Shimanano / Sram XDR  Center Lock Thru Axle / Quick Release Ultralight Wheel

    Size :700c
    Material :Toray T800 Carbon Fiber
    Surface Finish :

    X-Light  Matte / Glossy

    Tire Profile:Clincher Tubeless / Tubular
    Width:

    26mm

    Depth:35mm/38mm/40mm/45mm/50mm/60mm...
    Braking System :Disc Brake
    Spoke Holes:

    24/24Holes (Or Customized)

    Hubs :GOZONE R260D  Ceramic / No Ceramic Center Lock
    (Or Customized)
    Hubs Colour:Black
    O.L.DThru Axle :  Front 12x100mm / Rear 12x142mm
    Quick Release: Front 100mm / Rear 135mm
    Spokes:Gozone1423 / Pillar 1432/1423/1420 / Sapim cx ray
    ( Or Customized)
    Nipple Colour:Black/Siver/Red/Blue...
    Nipple Position:External or Internal
    Cassette Body:Shimano 9/10/11/12S /Sram XD 11/12S
    Weight Of Wheelset :Find the details as below
    Max Tire Pressure:130psi
    Max Cyclist Weight:130kg
    Applicable Bicycle:Road Disc Bicycle
    Shipping:By Boat/Plane/Express
    Standard:UCI/SGS(ISO)/EN...
    Warranty :2 Years
    Place Of Origin :Xiamen,China
    Logoes Customized:Available
    OEM&ODM:Available
    Free:3 Extra Spokes(nipples),Skewers( Only for QR)



    Weight Of Wheelset Reference(spokes with Gozone 1423 / Pillar 1432/1423)

    Weight            (+/-3%)Novatec 411/412Novatec 791/792Fastace DH825GO-ZONE PRO4GOZONE  601 602GOZONE  R260DGOZONE  R270DGOZONE  R320DGOZONE  R330DChosen SLDT Swiss 240EXPDT Swiss 350DT Swiss 180EXP
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    35mm Clincher Tubeless1440154015501450145513701380143014401410143015201400
    35mm Tubular1310141014201320132512401250130013101280130013901270
    38mm Clincher Tubeless1455155515651465147013851395144514551425144515351415
    38mm Tubular1325142514351335134012551265131513251295131514051285
    40mm Clincher Tubeless1475157515851485149014051415146514751445146515551435
    40mm Tubular1345144514551355136012751285133513451315133514251305
    45mm Clincher Tubeless1515161516251525153014451455150515151485150515951475
    45mm Tubular1365146514751375138012951305135513651335135514451325
    50mm Clincher Tubeless1545164516551555156014751485153515451515153516251505
    50mm Tubular1385148514951395140013151325137513851355137514651345
    60mm Clincher Tubeless1625172517351635164015551565161516251595161517051585
    60mm Tubular1425152515351435144013551365141514251395141515051385




    Weight Of Wheelset Reference(spokes with pillar 1420 or sapim cx ray)


    Weight            (+/-3%)Novatec 411/412Novatec 791/792Fastace DH825GO-ZONE PRO4GOZONE  601 602GOZONE  R260DGOZONE  R270DGOZONE  R320DGOZONE  R330DGOZONE  R280C(20/20H) Carbon SpokesChosen SLDT Swiss 240EXPDT Swiss 350DT Swiss 180EXP
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    35mm Clincher Tubeless13401440145013501355127012801330134011801310133014201300
    35mm Tubular12101310132012201225114011501200121010501180120012901170
    38mm Clincher Tubeless13551455146513651370128512951345135511951325134514351315
    38mm Tubular12251325133512351240115511651215122510651195121513051185
    40mm Clincher Tubeless13751475148513851390130513151365137512151345136514551335
    40mm Tubular12451345135512551260117511851235124510851215123513251205
    45mm Clincher Tubeless14151515152514251430134513551405141512551385140514951375
    45mm Tubular12651365137512751280119512051255126511051235125513451225
    50mm Clincher Tubeless14451545155514551460137513851435144512851415143515251405
    50mm Tubular12851385139512951300121512251275128511251255127513651245
    60mm Clincher Tubeless15251625163515351540145514651515152513651495151516051485
    60mm Tubular13251425143513351340125512651315132511651295131514051285


    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 2Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 3Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 4

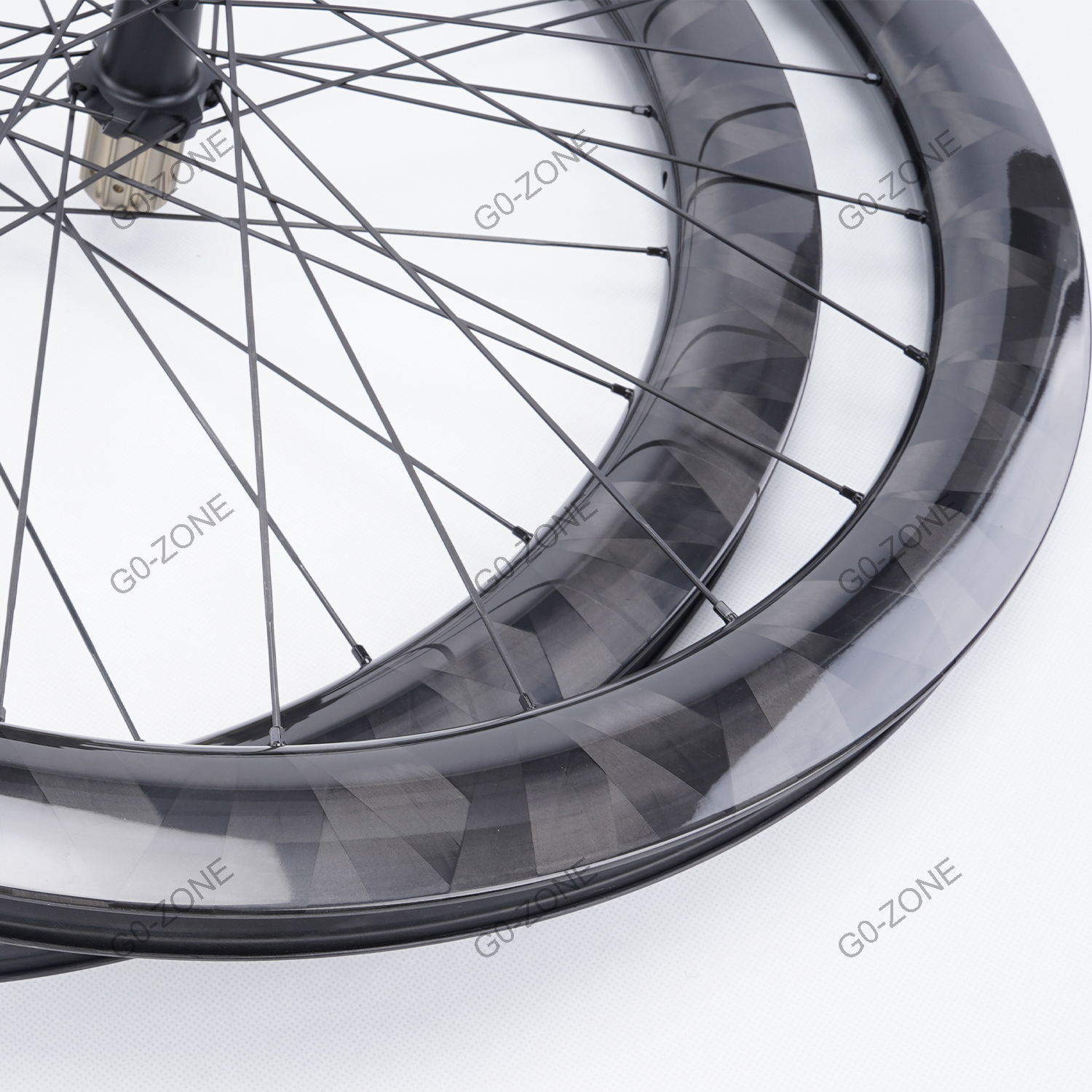

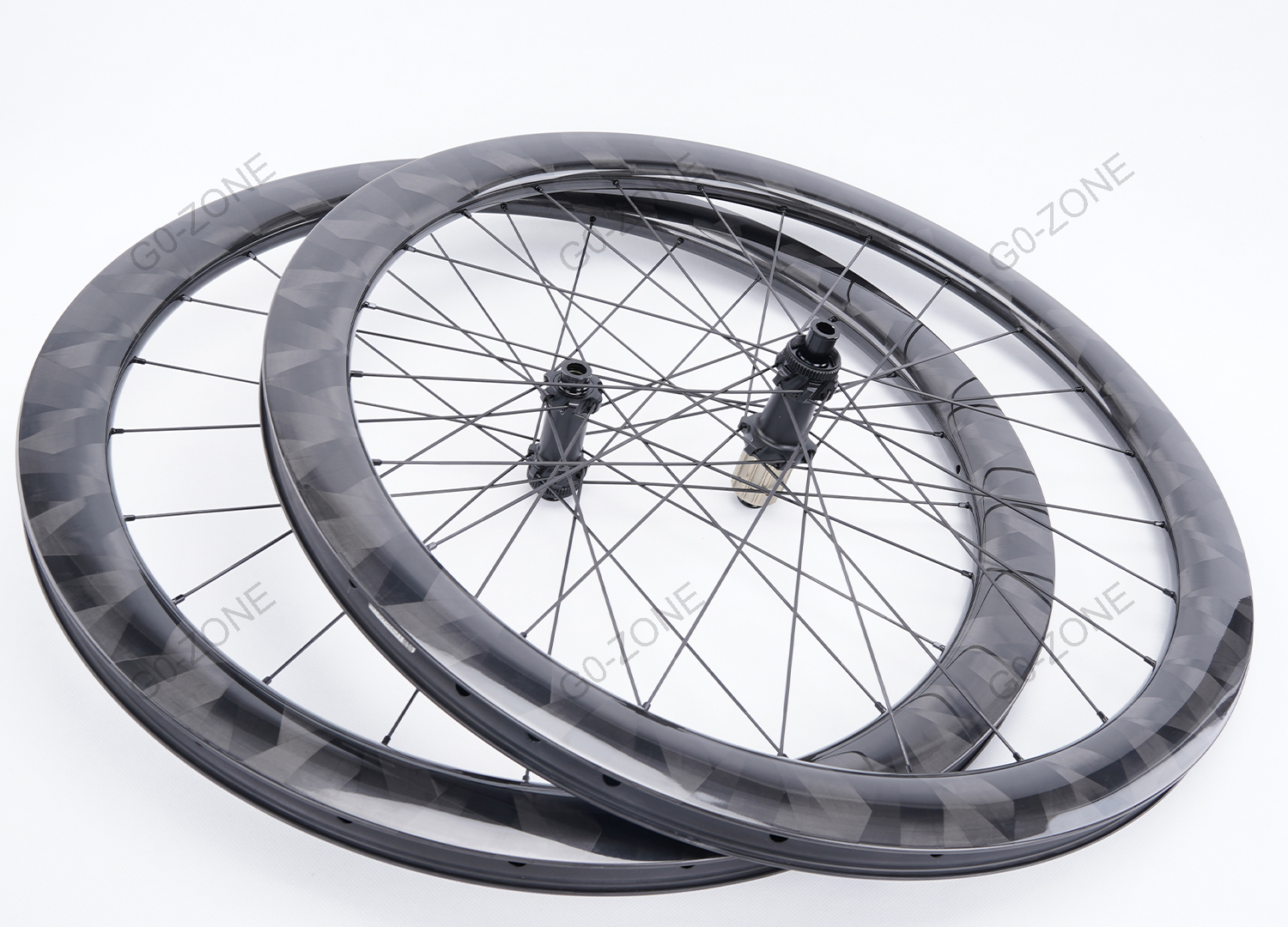

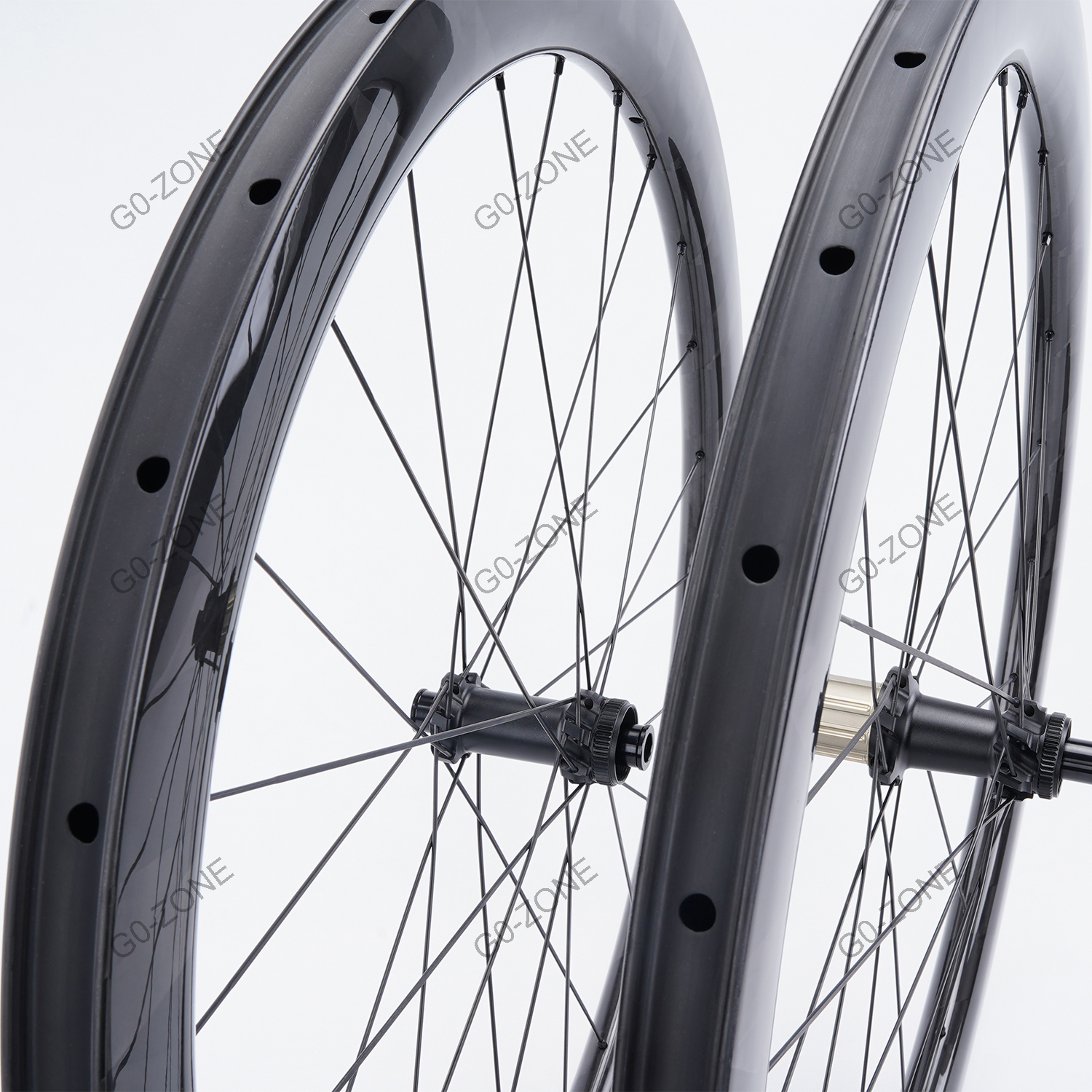

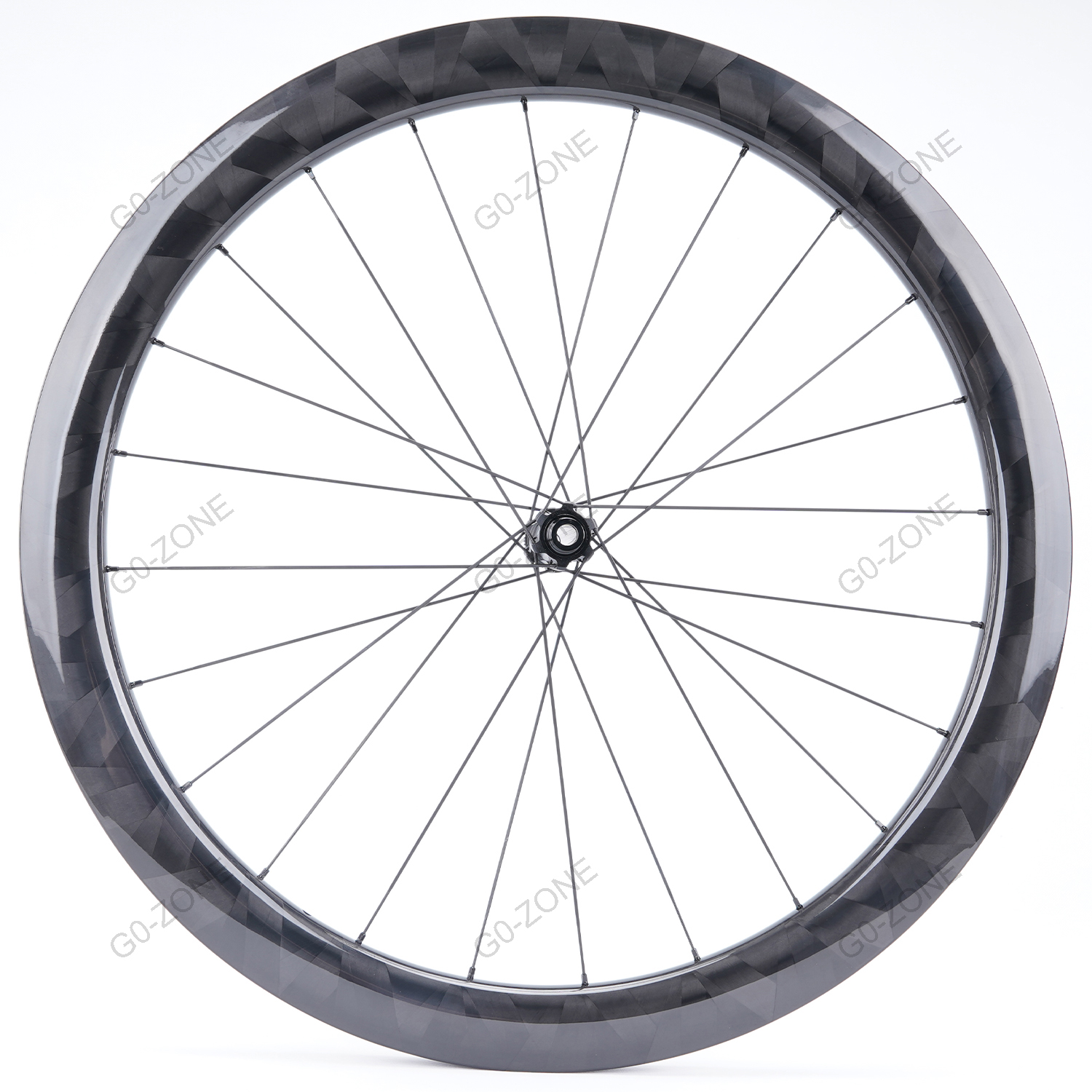

    Product Photos

    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 5

    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 6Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 7Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 8Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 9Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 10



    Factory Information / OEM & ODM


    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service.

    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 11

    Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon ultra light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon ultra light mtb wheels, carbon fat bike wheels, carbon frames, Carbon Folding Bike Wheels,Carbon 12inch Children's Bike Parts,Cycling Jersey,  etc.


    Our products have passed UC I (UNION CYCLISTE INTERNATIONALE) and SGS(ISO 4210:2015) standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, North America, South America, Australia, Africa..., and we have provided OEM & ODM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.


    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 12
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 13
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 14
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 15
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 16
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 17


    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 18
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 19
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 20
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 21
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 22
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 23



    Technology

    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 24





    Clincher & Tubular & Tubeless / External nipple & Internal nipple

    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 25

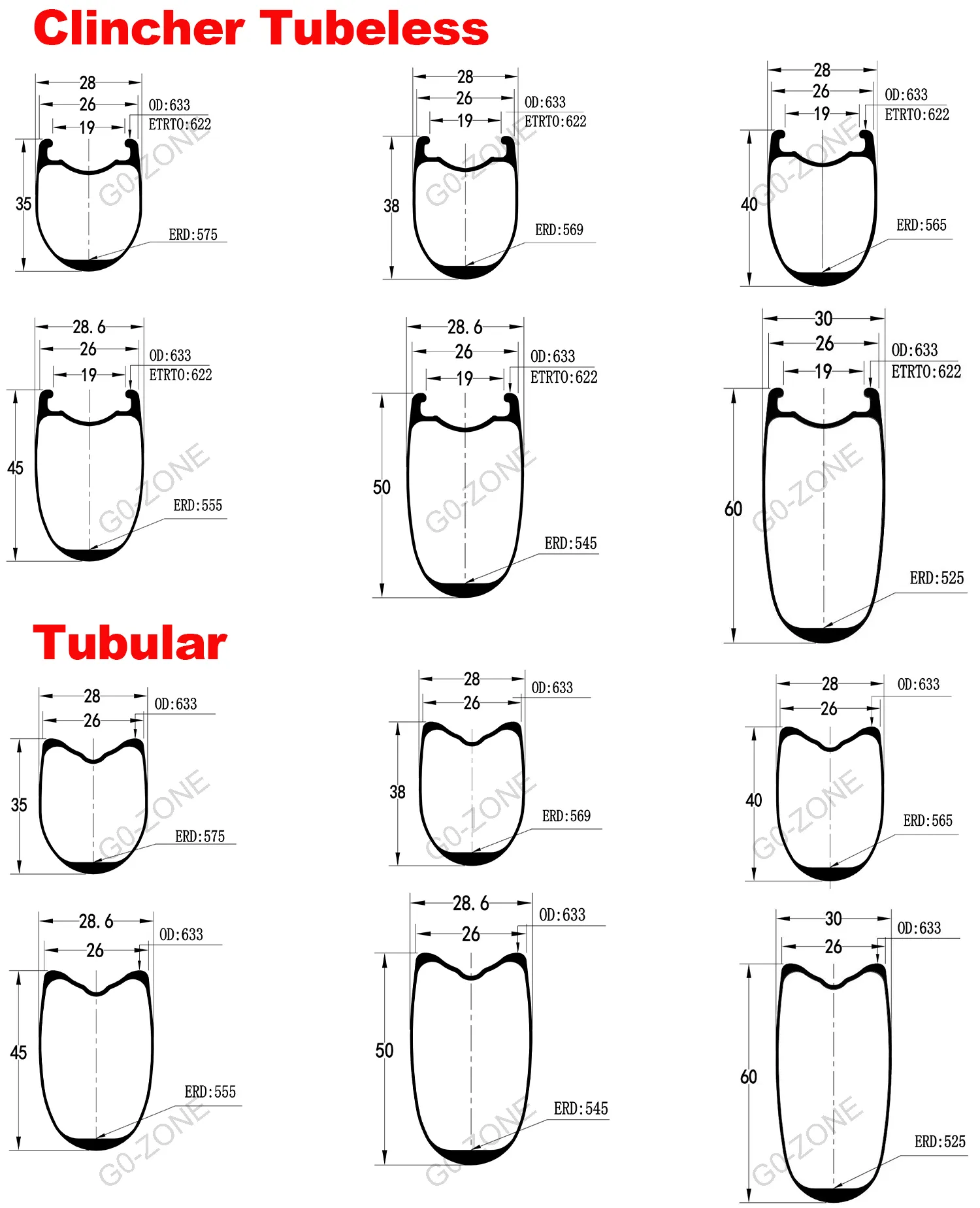

    26mm Width Rim Sizes For Reference Or OEM Mould

    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 26

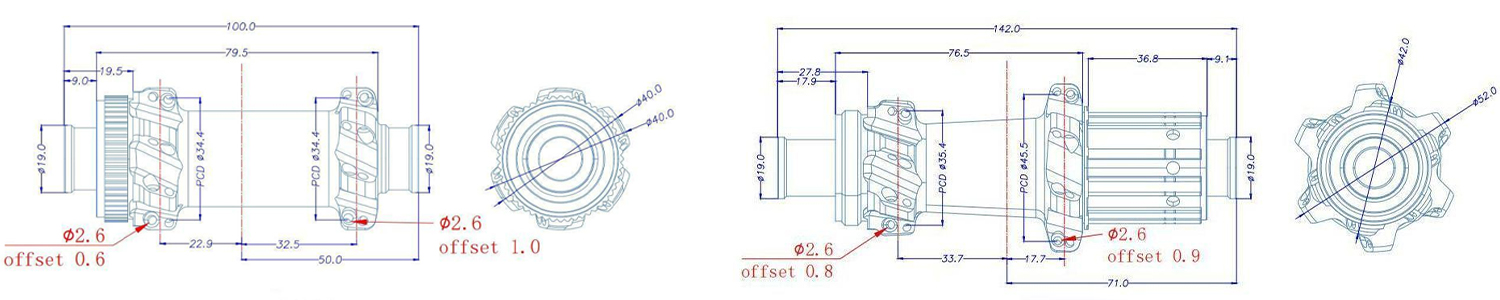

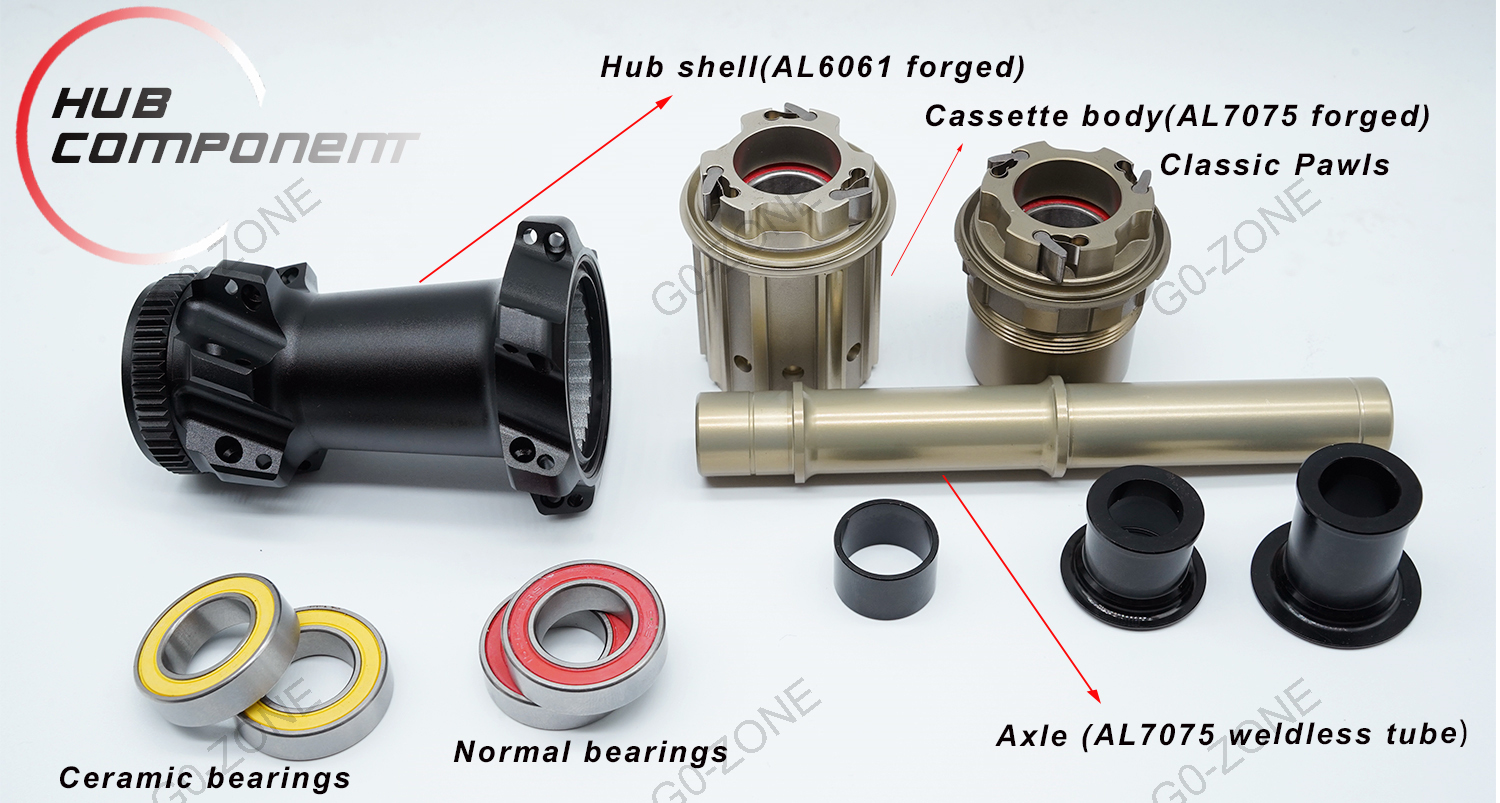

    Some Of Road Disc Hubs: make the wheels with the below hubs or as you request

    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 27


    Spokes & Nipples: make the wheels with the below spokes & nippless or as you request


    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 28


    Certification:SGS(ISO 4210:2015) & UCI Approved



    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 29
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 30
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 31



    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 32
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 33
    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 34


    Advantage

    Wholesale X-LIGHT R260D 700c Carbon Road Disc Wheels Racthet OEM Supplier 35
