Go Zone Wheels - UCI approved carbon rims & wheels manufacturer with OEM/ODM services.

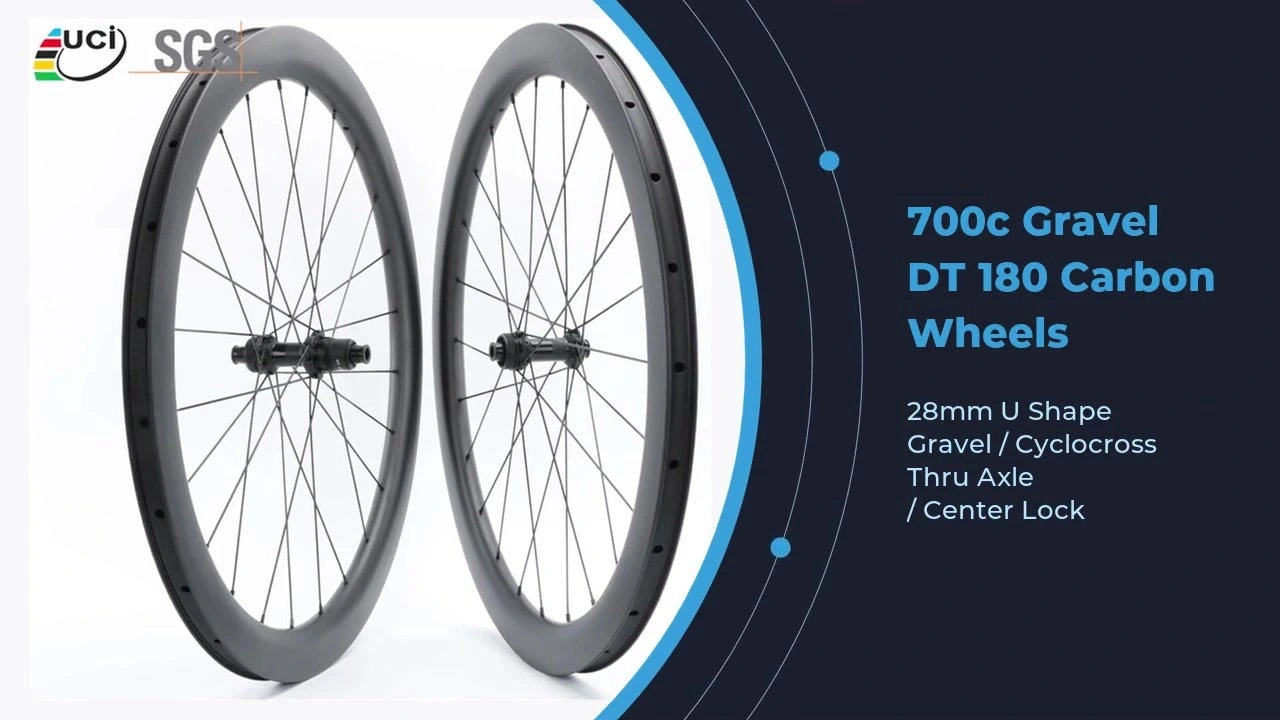

Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 1
Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 1

Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset

Wholesale 700c Gravel DT Swiss180 Carbon Wheels 28mm Width U Shape wheels centerlock thru axle shimano / Sram XDR Carbon Gravel / Cyclocross Road Disc wheelset OEM / ODM Factory Customized Wheels

    oops...!

    no product data.

    Go to homepage

    About Go Zone

    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service. Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon super light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon super light mtb wheels, carbon fat bike wheels, carbon frames, etc. Our products have passed the EN and ISO standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, etc, and we have provided ODM & OEM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.
    Product Parameter

    Wholesale 700c Gravel DT Swiss180 Carbon Wheels 28mm Width U Shape Hookless / Hook wheels centerlock thru axle shimano / Sram XDR Carbon Gravel / Cyclocross Road Disc wheelset OEM / ODM Factory Customized Wheels


    Size :700c
    Material :Toray T800 Carbon Fiber
    Surface Finish :

    UD/3K/12K/3K Twill/ 12K Twill...  Matte / Glossy

    Tire Profile:Clincher Tubeless / Tubualr
    Width:

    28mm

    Depth:33mm/38mm/40mm/45mm/50mm/55mm/60mm......
    Braking System :Disc Brake
    Spoke Holes:

    24/24Holes (Or Customized)

    Hubs :DT Swiss 180
    (Or Customized)
    Hubs Colour:As Photos
    O.L.DThru Axle :  Front 12x100mm / Rear 12x142mm
    Quick Release:  Front 100mm / Rear 135mm
    Spokes:Pillar 1432/Pillar 1420/CN 494/CN 424/Sapim cx ray
    ( Or Customized)
    Nipple Colour:Black/Siver/Red/Blue...
    Nipple Position:External or Internal
    Cassette Body:Shimano 9/10/11S /Sram XDR 12S
    Weight Of Wheelset :Find the details as below
    Max Tire Pressure:130psi
    Max Cyclist Weight:150kg
    Applicable Bicycle:Road Disc Bicycle
    Shipping:By Boat/Plane/Express
    Standard:UCI/SGS(ISO)/EN...
    Warranty :2 Years
    Place Of Origin :Xiamen,China
    Logoes Customized:Available
    OEM&ODM:Available
    Free:3 Extra Spokes(nipples)


    Weight Of Wheelset Reference(spokes with pillar 1432 /1423 or CN 474)

    Weight            (+/-3%)Novatec 411/412Novatec 791/792GOZONE PRO4GOZONE RD600GOZONE RD305Fastace DH825Chosen SLDT Swiss 240EXPDT Swiss 350DT Swiss 350SLDT Swiss 180EXPPowerway  CT31Powerway  CX32
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    33mm Clincher Tubeless1550165015601565156016601510154016301600151016501610
    33mm Tubular1420152014301435143015301380141015001470138015201480
    38mm Clincher Tubeless1580168015901595159016901540157016601630154016801640
    38mm Tubular1440154014501455145015501400143015201490140015401500
    40mm Clincher Tubeless1580168015901595159016901540157016601630154016801640
    40mm Tubular1470157014801485148015801430146015501520143015701530
    45mm Clincher Tubeless1600170016101615161017101560159016801650156017001660
    45mm Tubular1510161015201525152016201470150015901560147016101570
    50mm Clincher Tubeless1620172016301635163017301580161017001670158017201680
    50mm Tubular1540164015501555155016501500153016201590150016401600
    55mm Clincher Tubeless1640174016501655165017501600163017201690160017401700
    55mm Tubular1560166015701575157016701520155016401610152016601620
    60mm Clincher Tubeless1710181017201725172018201670170017901760167018101770
    60mm Tubular1580168015901595159016901540157016601630154016801640


    Weight Of Wheelset Reference(UD/3K,spokes with pillar 1420 or CN 424 or sapim)

    Weight            (+/-3%)Novatec 411/412Novatec 791/792GO-ZONE PRO4GO-ZONE RD600GO-ZONE RD305Fastace DH825Chosen SLDT Swiss 240EXPDT Swiss 350DT Swiss 350SLDT Swiss 180EXPPowerway  CT31Powerway  CX32
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    33mm Clincher Tubeless1445154514551460145515551405143515251495140515451505
    33mm Tubular1315141513251330132514251275130513951365127514151375
    38mm Clincher Tubeless1475157514851490148515851435146515551525143515751535
    38mm Tubular1335143513451350134514451295132514151385129514351395
    40mm Clincher Tubeless1475157514851490148515851435146515551525143515751535
    40mm Tubular1365146513751380137514751325135514451415132514651425
    45mm Clincher Tubeless1495159515051510150516051455148515751545145515951555
    45mm Tubular1405150514151420141515151365139514851455136515051465
    50mm Clincher Tubeless1515161515251530152516251475150515951565147516151575
    50mm Tubular1435153514451450144515451395142515151485139515351495
    55mm Clincher Tubeless1535163515451550154516451495152516151585149516351595
    55mm Tubular1455155514651470146515651415144515351505141515551515
    60mm Clincher Tubeless1605170516151620161517151565159516851655156517051665
    60mm Tubular1475157514851490148515851435146515551525143515751535


    Factory Information / OEM & ODM

    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service.

    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 2

    Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon ultra light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon ultra light mtb wheels, carbon fat bike wheels, carbon frames, Carbon Folding Bike Wheels,Carbon 12inch Children's Bike Parts,Cycling Jersey,  etc.


    Our products have passed UC I (UNION CYCLISTE INTERNATIONALE) and SGS(ISO 4210:2015) standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, North America, South America, Australia, Africa..., and we have provided OEM & ODM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.


    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 3
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 4
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 5
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 6
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 7
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 8


    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 9
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 10
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 11
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 12
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 13
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 14



    Surface Difference


    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 15

    Technology

    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 16





    Clincher & Tubular & Tubeless / External nipple & Internal nipple

    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 17

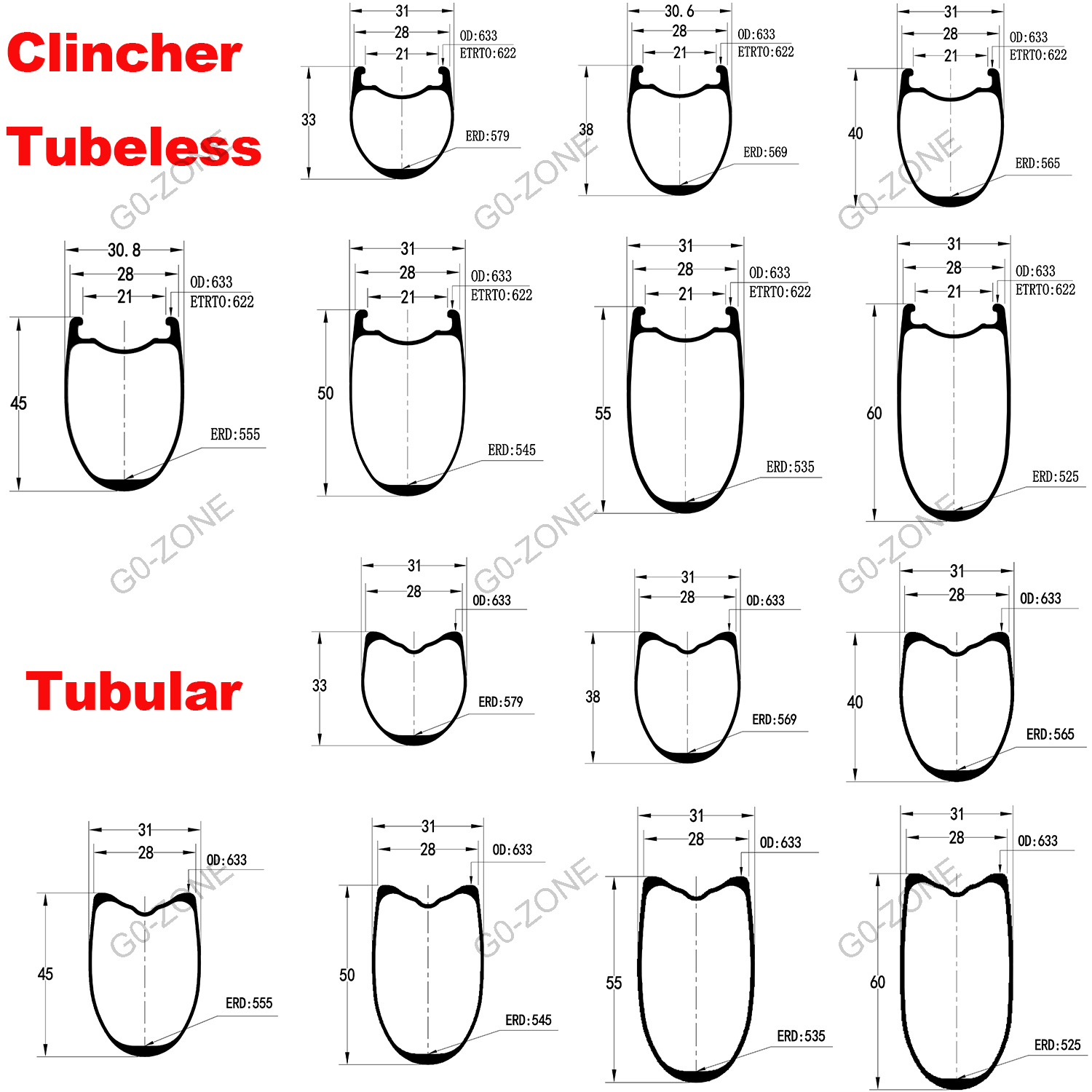

    28mm Width Rim Sizes For Reference Or OEM Mould


    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 18

    Some Of Road Disc Hubs: make the wheels with the below hubs or as you request

    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 19


    Spokes & Nipples: make the wheels with the below spokes & nippless or as you request


    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 20


    Certification:SGS(ISO 4210:2015) & UCI Approved



    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 21
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 22
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 23



    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 24
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 25
    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 26


    Advantage

    Wholesale 700c Gravel DT Swiss180 Carbon Wheels Disc 28mm U Shape wheelset 27
