Go Zone Wheels - UCI approved carbon rims & wheels manufacturer with OEM/ODM services.

700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 1
700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 1

700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g

Ultra Light 700c Road Carbon Wheels  Clincher Tubeless / Clincher / Tubular  GOZONE R270D Ratchet Wheelset Shimano / Sram XDR Thru Axle / Quick Release Centerlock Ceramic / Normal Bearings OEM / ODM Factory Supplier

1.

1235g (30x25mm Clincher Tubeless,  sapim cx ray)

Gozone R270D Super light Wheels
Ratchet System
Normal Bearings / Ceramic Bearings
Shimano / Sram XDR

2. UD Matte / Glossy

3. Clincher Tubeless / Clincher / Tubular

4.  Disc Brake

2424 Holes (Or Customized)

5. Spokes: Pillar / Gozone / Sapim...

6. Nipples: Black / Siver / Red / Blue...

7. SGS(ISO) / UCI Approved OEM & ODM Service



    oops...!

    no product data.

    Go to homepage

    About Go Zone

    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service. Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon super light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon super light mtb wheels, carbon fat bike wheels, carbon frames, etc. Our products have passed the EN and ISO standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, etc, and we have provided ODM & OEM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.
    Product Parameter

    Ultra Light 700c Road Carbon Wheels 3 Clincher Tubeless / Clincher / Tubular  GOZONE R270D Ratchet Wheelset Shimano / Sram XDR Thru Axle / Quick Release Centerlock Ceramic / Normal Bearings OEM / ODM Factory Supplier


    Size :700c
    Material :Toray T800 Carbon Fiber
    Surface Finish :

    UD Matte / Glossy

    Tire Profile:Clincher Tubeless / Clincher / Tubular
    Width:

    25mm

    Depth:30mm/35mm/38mm/40mm/45mm/50mm/55mm/60mm......
    Braking System :Disc Brake
    Spoke Holes:

    24/24Holes (Or Customized)

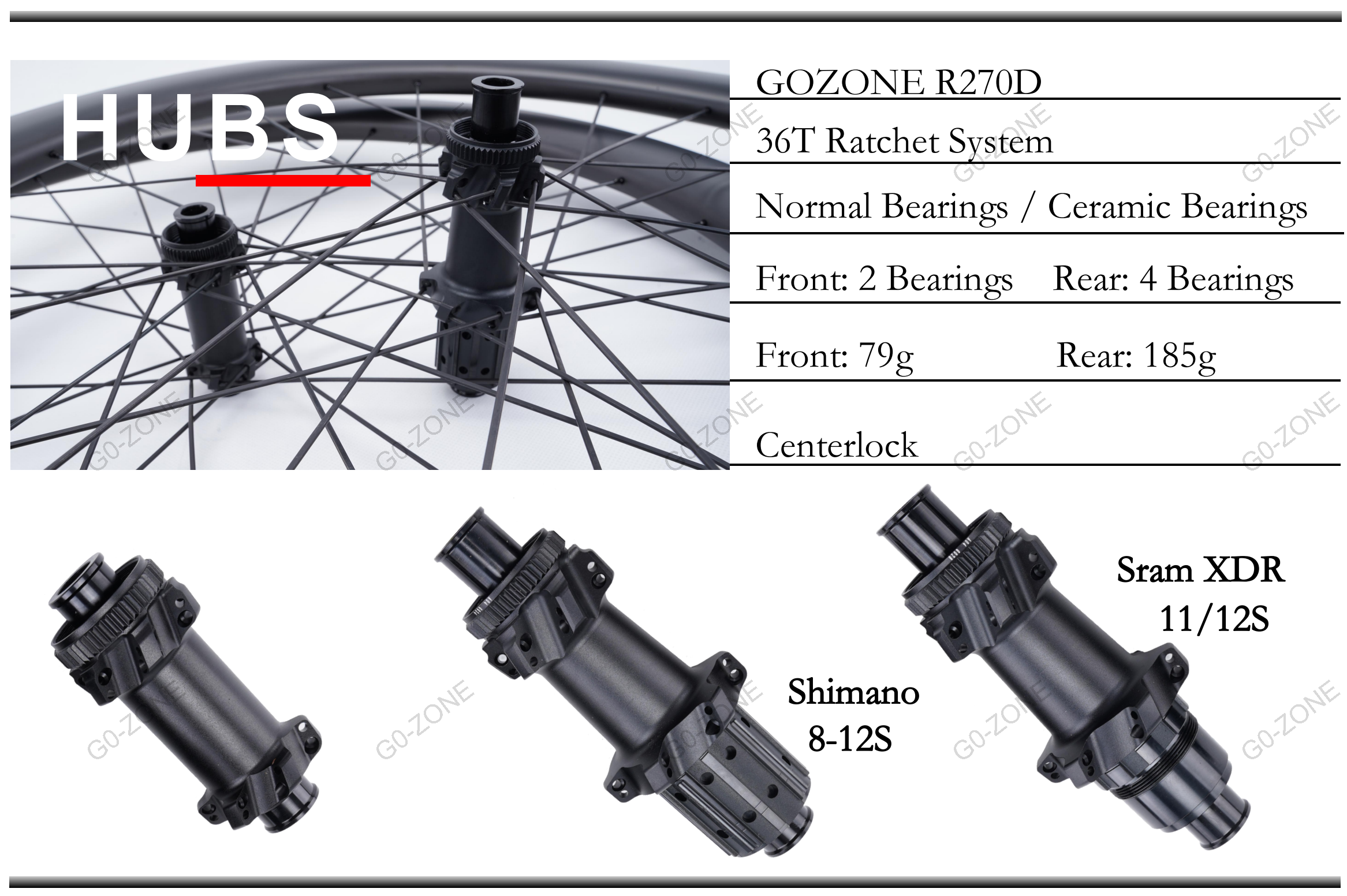

    Hubs :GOZONE R270D Ratchet Centerlock
    (Or Customized)
    Hubs Colour:As Photos
    O.L.DThru Axle :  Front 12x100mm / Rear 12x142mm
    Quick Release:  Front 100mm / Rear 135mm
    Spokes:Gozone 1423 / Pillar 1432/1423/1420 / Sapim cx ray
    ( Or Customized)
    Nipple Colour:Black/Siver/Red/Blue...
    Nipple Position:External or Internal
    Cassette Body:Shimano 9/10/11/12S /Sram XDR 12S
    Weight Of Wheelset :Find the details as below
    Max Tire Pressure:130psi
    Max Cyclist Weight:130kg
    Applicable Bicycle:Road Disc Bicycle
    Shipping:By Boat/Plane/Express
    Standard:UCI/SGS(ISO)/EN...
    Warranty :2 Years
    Place Of Origin :Xiamen,China
    Logoes Customized:Available
    OEM&ODM:Available
    Free:3 Extra Spokes(nipples)


    Weight Of Wheelset Reference(spokes with Gozone 1423 Or Pillar 1432 /1423 )

    Weight            (+/-3%)Novatec 411/412Novatec 791/792Fastace DH825GO-ZONE PRO4GOZONE  601 602GOZONE  R260DGOZONE  R270DGOZONE  R320DGOZONE  R330DChosen SLDT Swiss 240EXPDT Swiss 350SLDT Swiss 180EXP
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    30mm Clincher Tubeless1395149515051405141013251335138513951355138514451355
    30mm Clincher1395149515051405141013251335138513951355138514451355
    30mm Tubular1245134513551255126011751185123512451205123512951205
    35mm Clincher Tubeless1410151015201420142513401350140014101370140014601370
    35mm Clincher1410151015201420142513401350140014101370140014601370
    35mm Tubular1270137013801280128512001210126012701230126013201230
    38mm Clincher Tubeless1445154515551455146013751385143514451405143514951405
    38mm Clincher1445154515551455146013751385143514451405143514951405
    38mm Tubular1295139514051305131012251235128512951255128513451255
    40mm Clincher Tubeless1455155515651465147013851395144514551415144515051415
    40mm Clincher1455155515651465147013851395144514551415144515051415
    40mm Tubular1305140514151315132012351245129513051265129513551265
    45mm Clincher Tubeless1475157515851485149014051415146514751435146515251435
    45mm Clincher1475157515851485149014051415146514751435146515251435
    45mm Tubular1325142514351335134012551265131513251285131513751285
    50mm Clincher Tubeless1515161516251525153014451455150515151475150515651475
    50mm Clincher1515161516251525153014451455150515151475150515651475
    50mm Tubular1385148514951395140013151325137513851345137514351345
    55mm Clincher Tubeless1595169517051605161015251535158515951555158516451555
    55mm Clincher1595169517051605161015251535158515951555158516451555
    55mm Tubular1425152515351435144013551365141514251385141514751385
    60mm Clincher Tubeless1645174517551655166015751585163516451605163516951605
    60mm Clincher1645174517551655166015751585163516451605163516951605
    60mm Tubular1485158515951495150014151425147514851445147515351445



    Weight Of Wheelset Reference(spokes with pillar 1420 Or Sapim CX-Ray)


    Weight            (+/-3%)Novatec 411/412Novatec 791/792Fastace DH825GO-ZONE PRO4GOZONE  601 602GOZONE  R260DGOZONE  R270DGOZONE  R320DGOZONE  R330DGOZONE  R280C(20/20H) Carbon SpokesChosen SLDT Swiss 240EXPDT Swiss 350SLDT Swiss 180EXP
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    30mm Clincher Tubeless12951395140513051310122512351285129511351255128513451255
    30mm Clincher12951395140513051310122512351285129511351255128513451255
    30mm Tubular1145124512551155116010751085113511459851105113511951105
    35mm Clincher Tubeless13101410142013201325124012501300131011501270130013601270
    35mm Clincher13101410142013201325124012501300131011501270130013601270
    35mm Tubular11701270128011801185110011101160117010101130116012201130
    38mm Clincher Tubeless13451445145513551360127512851335134511851305133513951305
    38mm Clincher13451445145513551360127512851335134511851305133513951305
    38mm Tubular11951295130512051210112511351185119510351155118512451155
    40mm Clincher Tubeless13551455146513651370128512951345135511951315134514051315
    40mm Clincher13551455146513651370128512951345135511951315134514051315
    40mm Tubular12051305131512151220113511451195120510451165119512551165
    45mm Clincher Tubeless13751475148513851390130513151365137512151335136514251335
    45mm Clincher13751475148513851390130513151365137512151335136514251335
    45mm Tubular12251325133512351240115511651215122510651185121512751185
    50mm Clincher Tubeless14151515152514251430134513551405141512551375140514651375
    50mm Clincher14151515152514251430134513551405141512551375140514651375
    50mm Tubular12851385139512951300121512251275128511251245127513351245
    55mm Clincher Tubeless14951595160515051510142514351485149513351455148515451455
    55mm Clincher14951595160515051510142514351485149513351455148515451455
    55mm Tubular13251425143513351340125512651315132511651285131513751285
    60mm Clincher Tubeless15451645165515551560147514851535154513851505153515951505
    60mm Clincher15451645165515551560147514851535154513851505153515951505
    60mm Tubular13851485149513951400131513251375138512251345137514351345

    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 2


    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 3

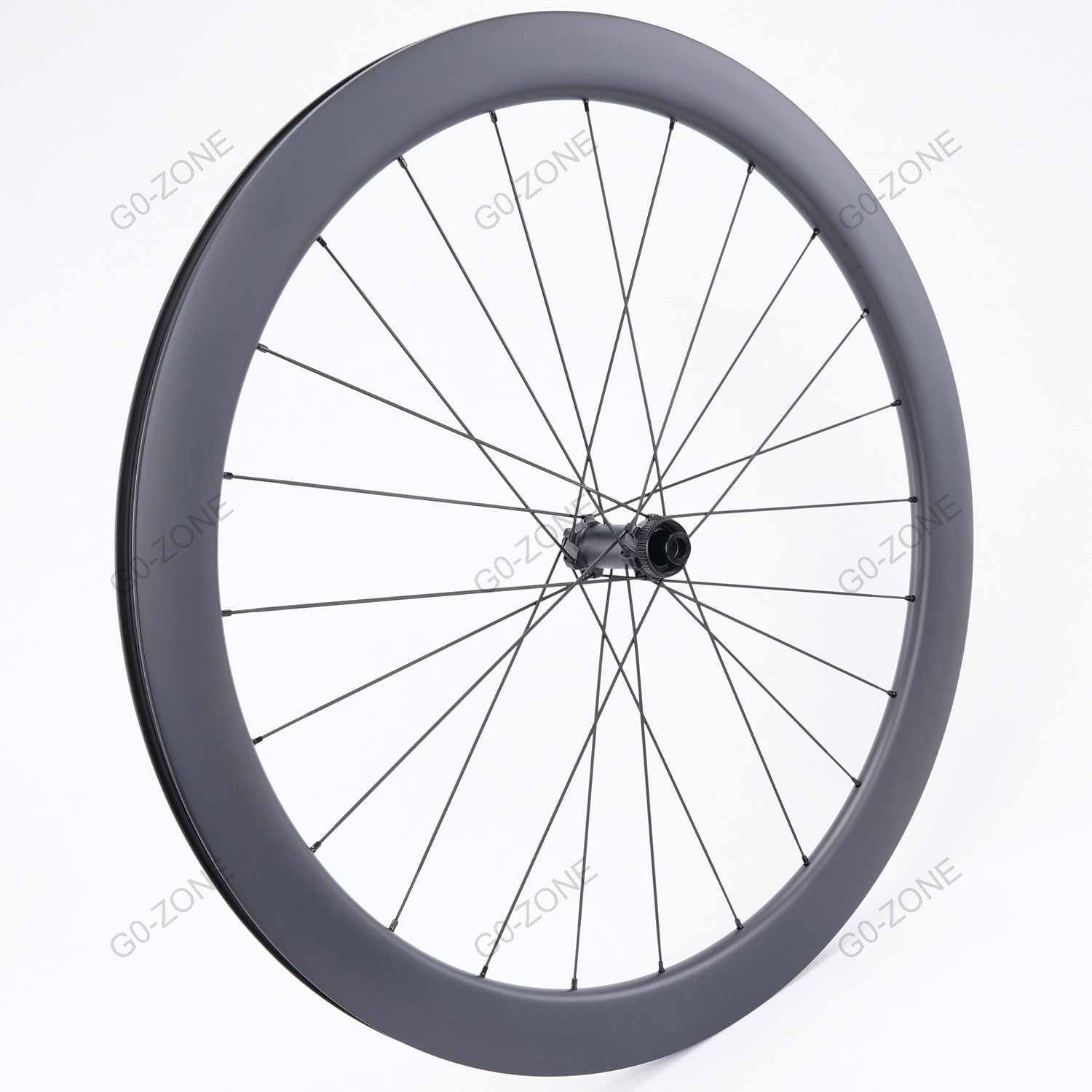

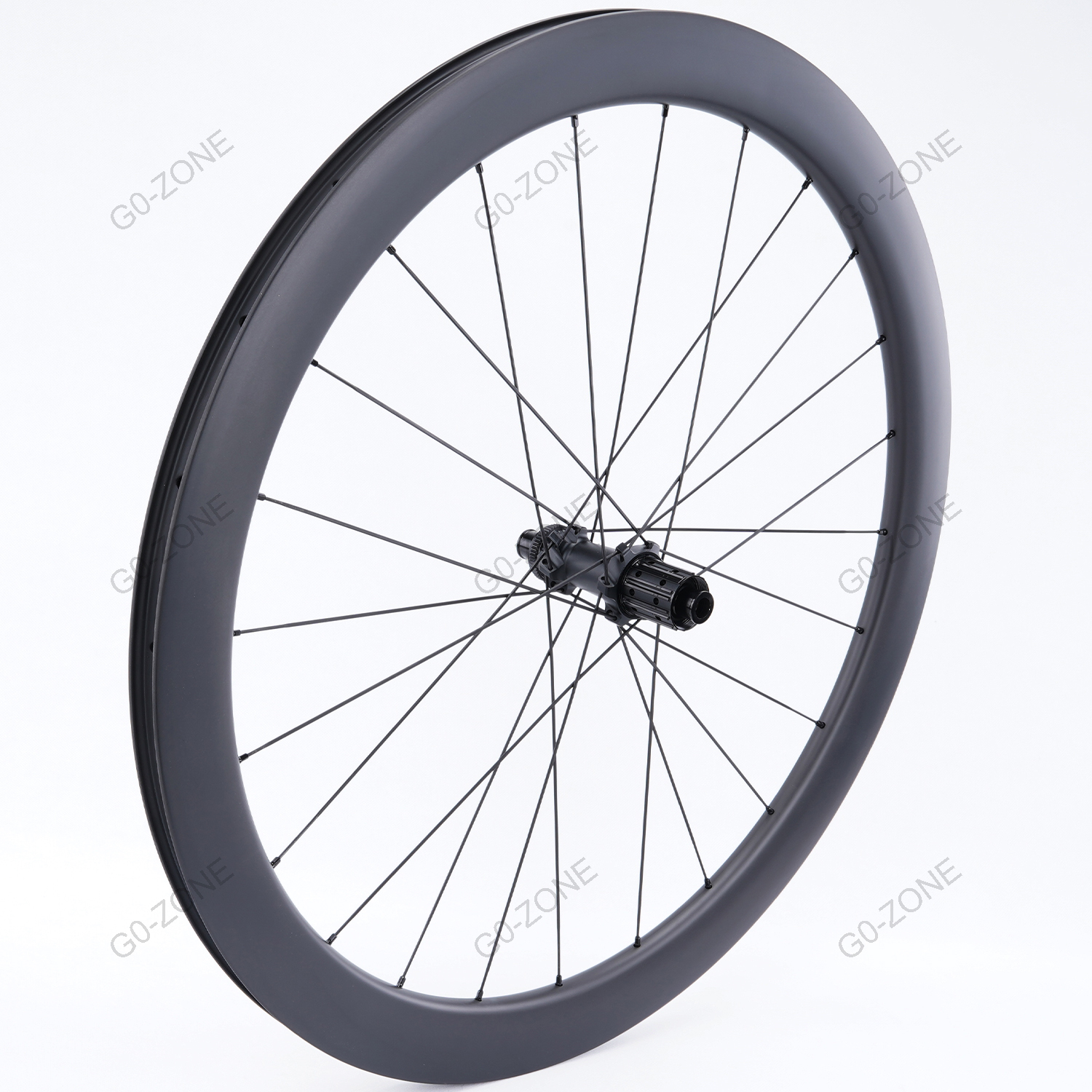

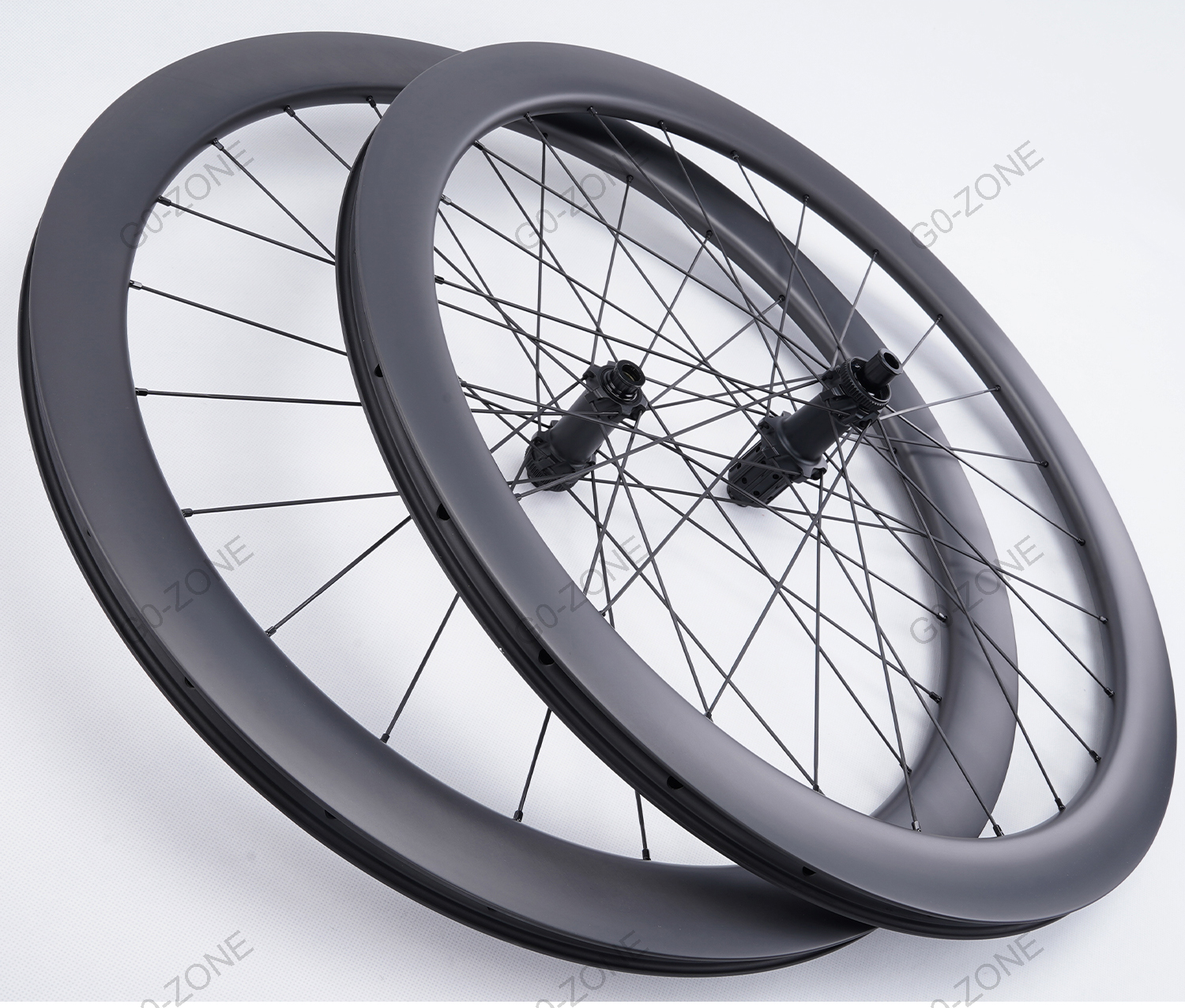

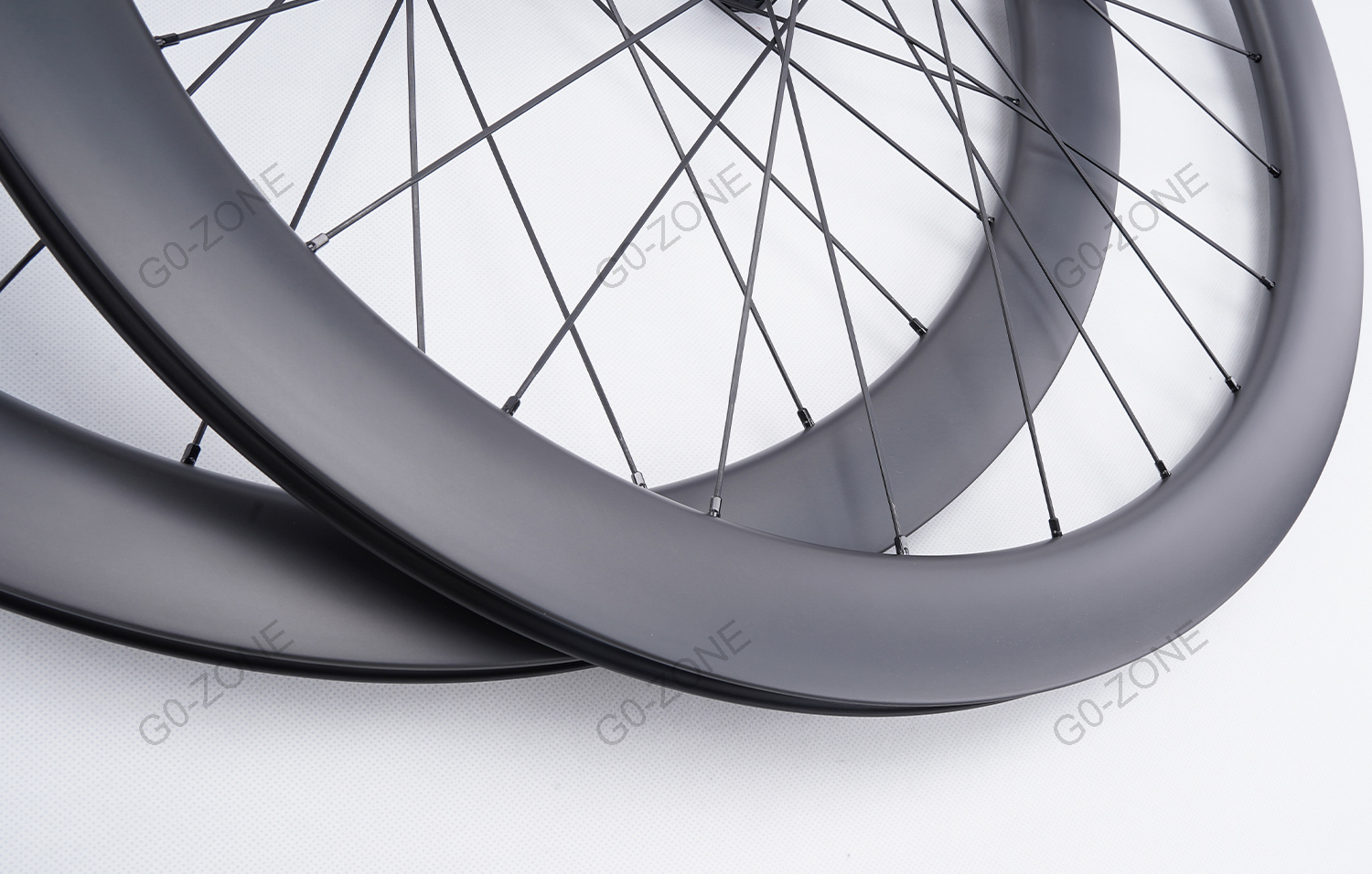

    Product Photos

    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 4700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 5


    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 6700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 7

    Factory Information / OEM & ODM


    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service.

    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 8

    Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon ultra light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon ultra light mtb wheels, carbon fat bike wheels, carbon frames, Carbon Folding Bike Wheels,Carbon 12inch Children's Bike Parts,Cycling Jersey,  etc.


    Our products have passed UC I (UNION CYCLISTE INTERNATIONALE) and SGS(ISO 4210:2015) standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, North America, South America, Australia, Africa..., and we have provided OEM & ODM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.


    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 9
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 10
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 11
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 12
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 13
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 14


    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 15
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 16
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 17
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 18
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 19
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 20




    Technology

    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 21





    Clincher & Tubular & Tubeless / External nipple & Internal nipple

    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 22

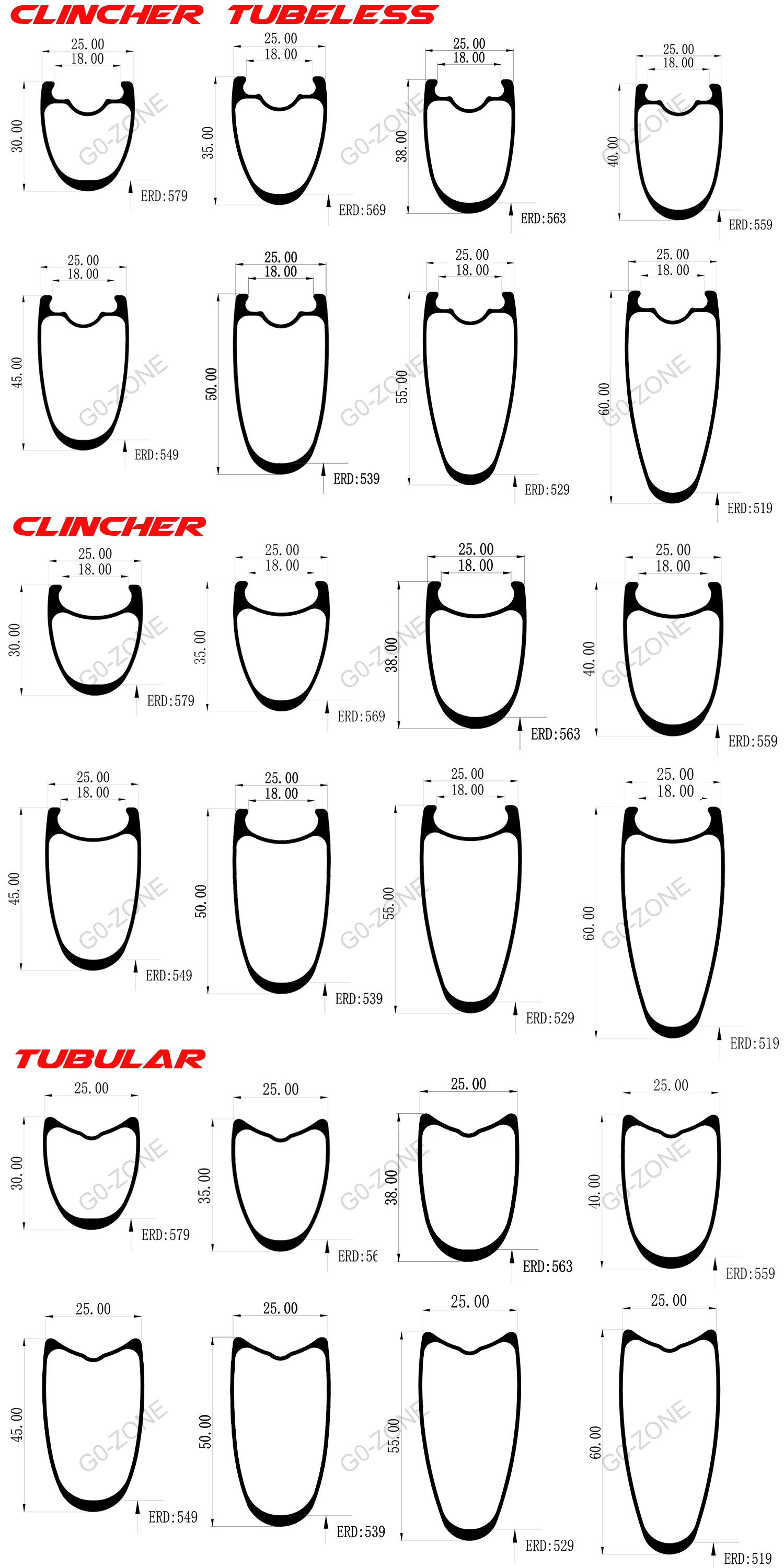

    25mm Width Rim Sizes For Reference Or OEM Mould


    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 23

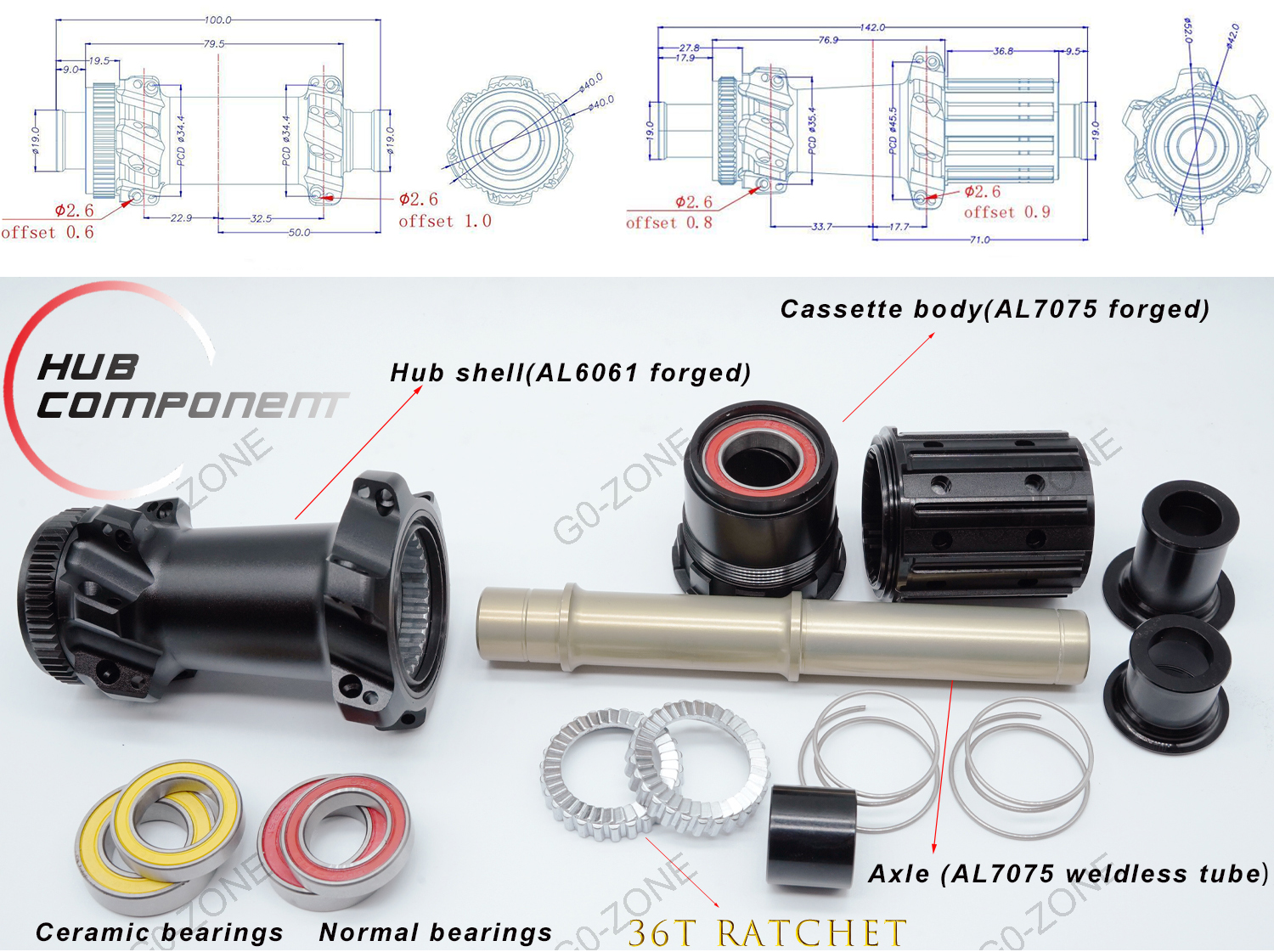

    Some Of Road Disc Hubs: make the wheels with the below hubs or as you request

    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 24


    Spokes & Nipples: make the wheels with the below spokes & nippless or as you request


    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 25

    Certification:SGS(ISO 4210:2015) & UCI Approved



    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 26
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 27
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 28



    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 29
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 30
    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 31


    Advantage

    700c Ultralight Ratchet R270D Carbon Wheelset Disc Brake Wheels 1235g 32
