Go Zone Wheels - UCI approved carbon rims & wheels manufacturer with OEM/ODM services.

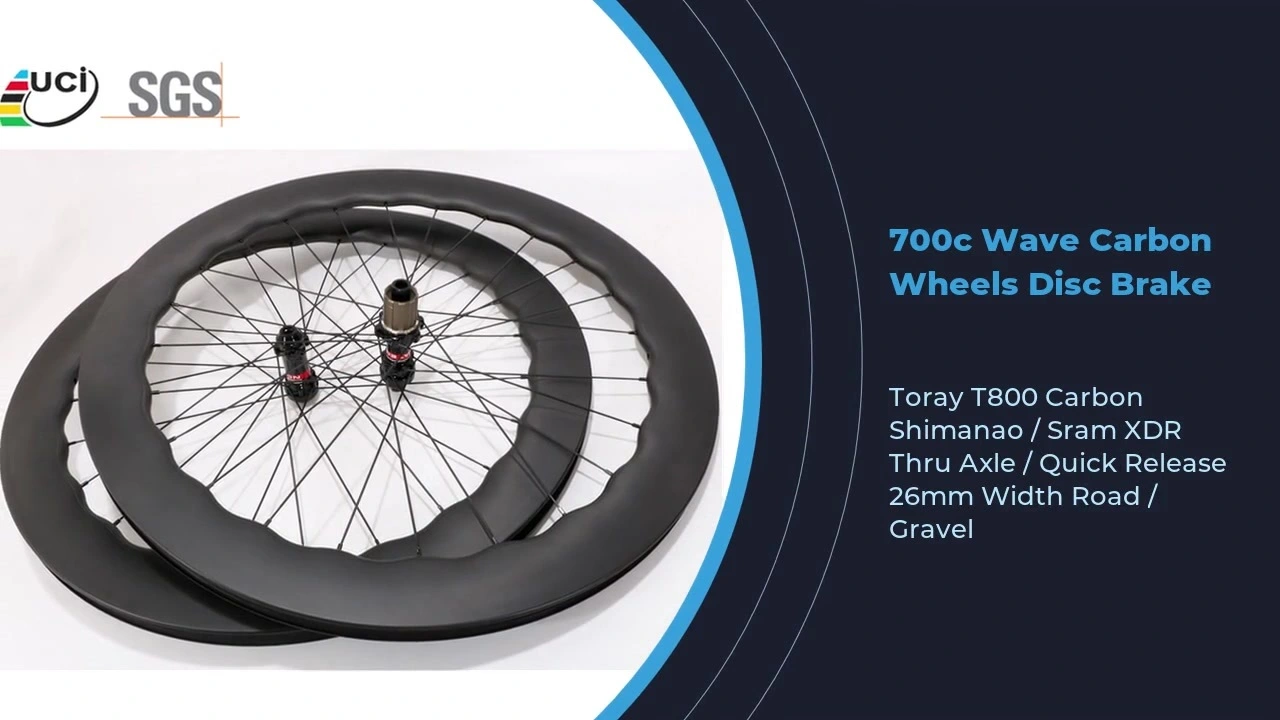

700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 1
700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 1

700c Wave Carbon Wheels Disc Brake / Gravel Wheelset

 26mm / 28mm Width UCI Quality 700c Wave Carbon Wheels Disc Brake / Gravel OEM & ODM Novatec / DT Swiss / Gozone Wheelset

1.Toray T800 Carbon

  Shimanao / Sram XDR

  Thru Axle / Quick Release

  26mm / 28mm Width Road / Gravel

2.  OEM & ODM Service

3. Clincher Tubeless/ Tubular

4. Disc Brake 24/24 Holes

5. Spokes: Pillar/Gozone/Sapim...

   Nipples: Black / Siver / Red / Blue...

6. SGS(ISO) / UCI Approved

7. Rim Size :

   26mm Width: 45-40mm / 65-60mm

   28mm Width: 45-40mm / 58-53mm / 80-75mm


    oops...!

    no product data.

    Go to homepage

    About Go Zone

    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service. Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon super light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon super light mtb wheels, carbon fat bike wheels, carbon frames, etc. Our products have passed the EN and ISO standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, etc, and we have provided ODM & OEM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.
    Product Parameter

    Wholesale 700c Gravel DT Swiss180 Carbon Wheels 28mm Width U Shape Hookless / Hook wheels centerlock thru axle shimano / Sram XDR Carbon Gravel / Cyclocross Road Disc wheelset OEM / ODM Factory Customized Wheels


    Size :700c
    Material :Toray T800 Carbon Fiber
    Surface Finish :

    UD/3K...  Matte / Glossy

    Tire Profile:Clincher Tubeless / Tubular
    Rim Size

    26mm Width: 45-40mm Depth / 65-60mm Depth

    28mm Width: 45-40mm Depth / 58-53mm Depth / 80-75mm Depth
    Braking System :Disc Brake
    Spoke Holes:

    24/24Holes (Or Customized)

    Hubs :Novatec 411 412 / 791 792
    DT Swiss 240 /180 / 350
    Gozone R260D / R270D/ R320D / R330D
    Choosen
    (Or Customized)
    Hubs Colour:As Photos
    O.L.DThru Axle :  Front 12x100mm / Rear 12x142mm
    Quick Release:  Front 100mm / Rear 135mm
    Spokes:Gozone 1423 / Pillar 1432/1423/1420 / Sapim cx ray
    ( Or Customized)
    Nipple Colour:Black/Siver/Red/Blue...
    Nipple Position:External or Internal
    Cassette Body:Shimano 9/10/11/12S /Sram XDR 11/12S
    Weight Of Wheelset :Find the details as below
    Max Tire Pressure:150psi
    Max Cyclist Weight:150kg
    Applicable Bicycle:Road Disc Bicycle
    Shipping:By Boat/Plane/Express
    Standard:UCI/SGS(ISO)/EN...
    Warranty :2 Years
    Place Of Origin :Xiamen,China
    Logoes Customized:Available
    OEM&ODM:Available
    Free:3 Extra Spokes(nipples)


    Weight Of Wheelset Reference(spokes with Gozone 1423 Or Pillar 1432 /1423 )


    WidthWeight            (+/-3%)Novatec 411/412Novatec 791/792Fastace DH825GO-ZONE PRO4GOZONE  601 602GOZONE  R260DGOZONE  R270DGOZONE  R320DGOZONE  R330DChosen SLDT Swiss 240EXPDT Swiss 350DT Swiss 180EXP
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    26mm40&45 Clincher Tubeless1555165516651565157014851495154515551525154516351515
    40&45 Tubular1475157515851485149014051415146514751445146515551435
    60&65 Clincher Tubeless1715181518251725173016451655170517151685170517951675
    60&65 Tubular1575167516851585159015051515156515751545156516551535
    28mm40&45 Clincher Tubeless1635173517451645165015651575162516351605162517151595
    40&45 Tubular1515161516251525153014451455150515151485150515951475
    53&58 Clincher Tubeless1715181518251725173016451655170517151685170517951675
    53&58 Tubular1575167516851585159015051515156515751545156516551535
    75&80 Clincher Tubeless1935203520451945195018651875192519351905192520151895
    75&80 Tubular1735183518451745175016651675172517351705172518151695



    Weight Of Wheelset Reference(spokes with Pillar 1420 Or Sapim CX Ray)

    WidthWeight            (+/-3%)Novatec 411/412Novatec 791/792Fastace DH825GO-ZONE PRO4GOZONE  601 602GOZONE  R260DGOZONE  R270DGOZONE  R320DGOZONE  R330DChosen SLDT Swiss 240EXPDT Swiss 350DT Swiss 180EXP
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    26mm40&45 Clincher Tubeless1455155515651465147013851395144514551425144515351415
    40&45 Tubular1375147514851385139013051315136513751345136514551335
    60&65 Clincher Tubeless1615171517251625163015451555160516151585160516951575
    60&65 Tubular1475157515851485149014051415146514751445146515551435
    28mm40&45 Clincher Tubeless1535163516451545155014651475152515351505152516151495
    40&45 Tubular1415151515251425143013451355140514151385140514951375
    53&58 Clincher Tubeless1615171517251625163015451555160516151585160516951575
    53&58 Tubular1475157515851485149014051415146514751445146515551435
    75&80 Clincher Tubeless1835193519451845185017651775182518351805182519151795
    75&80 Tubular1635173517451645165015651575162516351605162517151595



    Factory Information / OEM & ODM


    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service.

    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 2

    Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon ultra light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon ultra light mtb wheels, carbon fat bike wheels, carbon frames, Carbon Folding Bike Wheels,Carbon 12inch Children's Bike Parts,Cycling Jersey,  etc.


    Our products have passed UC I (UNION CYCLISTE INTERNATIONALE) and SGS(ISO 4210:2015) standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, North America, South America, Australia, Africa..., and we have provided OEM & ODM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.


    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 3
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 4
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 5
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 6
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 7
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 8


    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 9
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 10
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 11
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 12
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 13
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 14

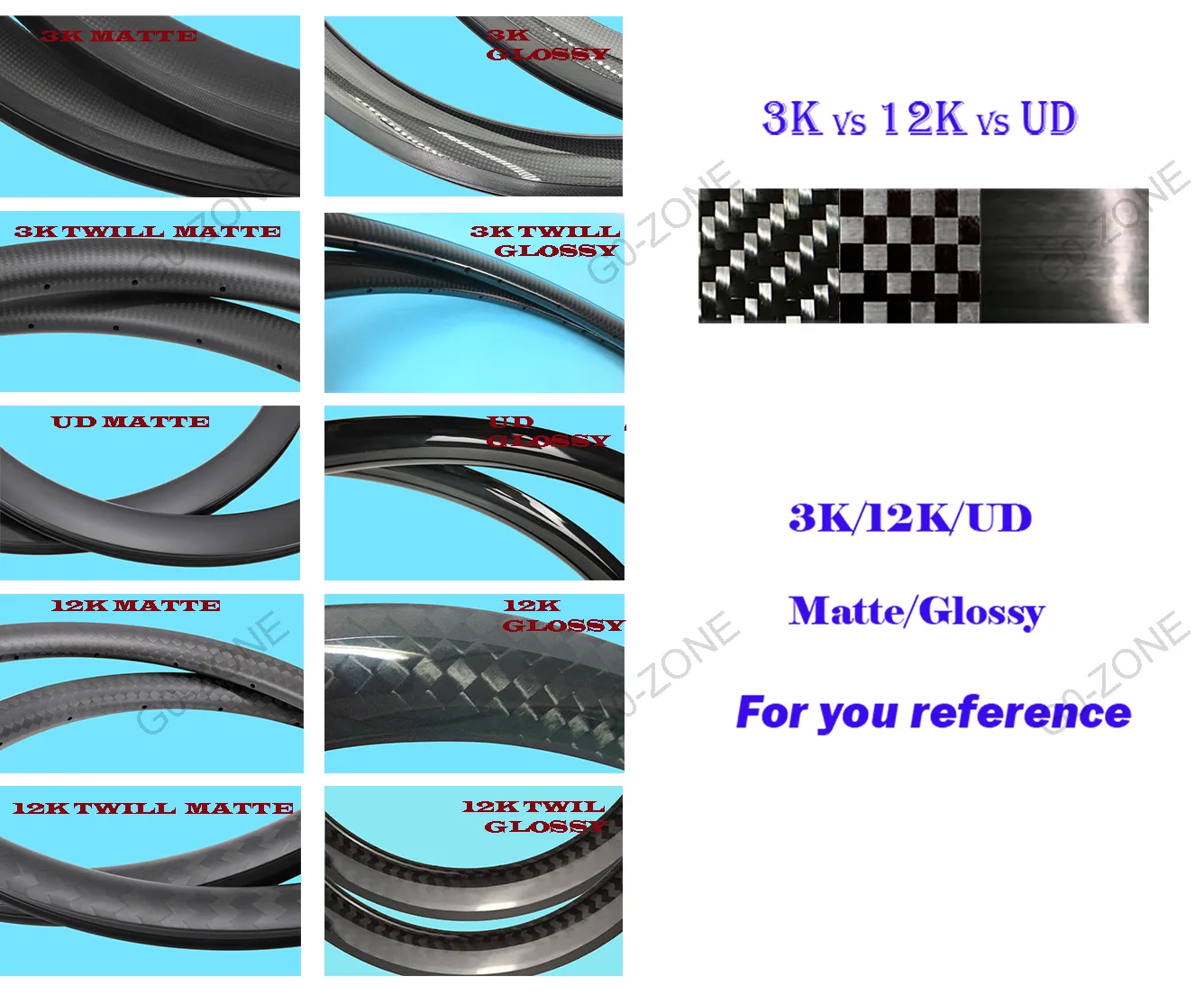

    Surface Difference


    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 15

    Technology

    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 16





    Clincher & Tubular & Tubeless / External nipple & Internal nipple

    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 17


    28mm Width Rim Sizes For Reference Or OEM Mould



    Some Of Road Disc Hubs: make the wheels with the below hubs or as you request

    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 18


    Spokes & Nipples: make the wheels with the below spokes & nippless or as you request


    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 19

    Certification:SGS(ISO 4210:2015) & UCI Approved



    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 20
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 21
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 22



    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 23
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 24
    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 25


    Advantage

    700c Wave Carbon Wheels Disc Brake / Gravel Wheelset 26
