    Product Parameter


    Size :27.5er
    Material :Toray T800 Carbon Fiber
    Surface Finish :UD/3K/3k Twill/12K/12k Twill...    Matte / Glossy
    Tire Profile :Clincher Tubeless
    Width*Depth :

    Symmetry : 27*25mm/30*25mm/30*28mm/35*25mm/37*24mm/45*30mm..

    Asymmetry : 27.4*23mm/30*24mm/35*25mm..

    (Or Customized)
    Braking System  :Disc Brake
    Spoke Holes :32/32 Holes(28/28 is available)
    Hubs :Hope Pro4
    (Or Customized)
    Hubs Colour :Black/Red/Blue...
    O.L.DThru Axle  :   Front 100*15mm / Rear 142*12mm
    Quick Release  :  Front 100mm / Rear 135mm
    Boost :  Front 110*15mm / Rear 148*12mm
    Spokes :Pillar 1423/Pillar 1420/CN 474/CN 424/Sapim cx ray
    ( Or Customized)
    Nipple Colour :Black/Siver/Red/Blue...
    Nipple Position :Internal or External
    Cassette Body :Shimano 9/10/11s or Sram XD (XX1) 11s  12s
    Weight Of Wheelset  :Find the details as below
    Max Tire Pressure :80psi
    Max Cyclist Weight :150kg
    Applicable Bicycle :MTB Bicycle
    Shipping :By Boat/Plane/Express
    Standard :UCI/SGS(ISO)/EN...
    Warranty  :2 Years
    Place Of Origin  :Xiamen,China
    Logoes Customized :Available
    OEM&ODM :Available
    Free :3 Extra Spokes(nipples), QR Skewers(only for QR)


    Weight Of Wheelset Reference(UD/3K, spokes with pillar 1423 or CN 474)


    Weight   (+/-3%)Novatec 791/792Novatec 411/412DT Swiss 240EXPDT Swiss 350SLPowerway  M42Powerway  M81Powerway  M82Fastace DA206Hope pro4
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    27*25MM(XC)151014101400146015101530156015401570
    27.4*23MM(XC)147013701360142014701490152015001530
    30*24MM(XC)150014001390145015001520155015301560
    30*25MM(XC)154014401430149015401560159015701600
    30*28MM(XC/TR)154014401430149015401560159015701600
    30*28MM(AM)166015601550161016601680171016901720
    35*25MM(TR/AM)162015201510157016201640167016501680
    35*25MM(DH)170016001590165017001720175017301760
    37*24MM(AM)164015401530159016401660169016701700
    37*24MM(DH)182017201710177018201840187018501880
    45*30MM(AM)180017001690175018001820185018301860


    Weight Of Wheelset Reference(UD/3K, spokes with spokes with pillar 1420 or CN 424 or sapim)


    Weight   (+/-3%)Novatec 791/792Novatec 411/412DT Swiss 240EXPDT Swiss 350SLPowerway  M42Powerway  M81Powerway  M82Fastace DA206Hope pro4
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    27*25MM(XC)141013101300136014101430146014401470
    27.4*23MM(XC)137012701260132013701390142014001430
    30*24MM(XC)140013001290135014001420145014301460
    30*25MM(XC)144013401330139014401460149014701500
    30*28MM(XC)144013401330139014401460149014701500
    30*28MM(AM)156014601450151015601580161015901620
    35*25MM(AM)152014201410147015201540157015501580
    35*25MM(DH)160015001490155016001620165016301660
    37*24MM(AM)154014401430149015401560159015701600
    37*24MM(DH)172016201610167017201740177017501780
    45*30MM(AM)170016001590165017001720175017301760
    Factory Information / OEM & ODM


    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service.

    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 2

    Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon ultra light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon ultra light mtb wheels, carbon fat bike wheels, carbon frames, Carbon Folding Bike Wheels,Carbon 12inch Children's Bike Parts,Cycling Jersey,  etc.


    Our products have passed UC I (UNION CYCLISTE INTERNATIONALE) and SGS(ISO 4210:2015) standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, North America, South America, Australia, Africa..., and we have provided OEM & ODM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.


    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 3
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 4
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 5
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 6
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 7
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 8


    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 9
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 10
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 11
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 12
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 13
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 14

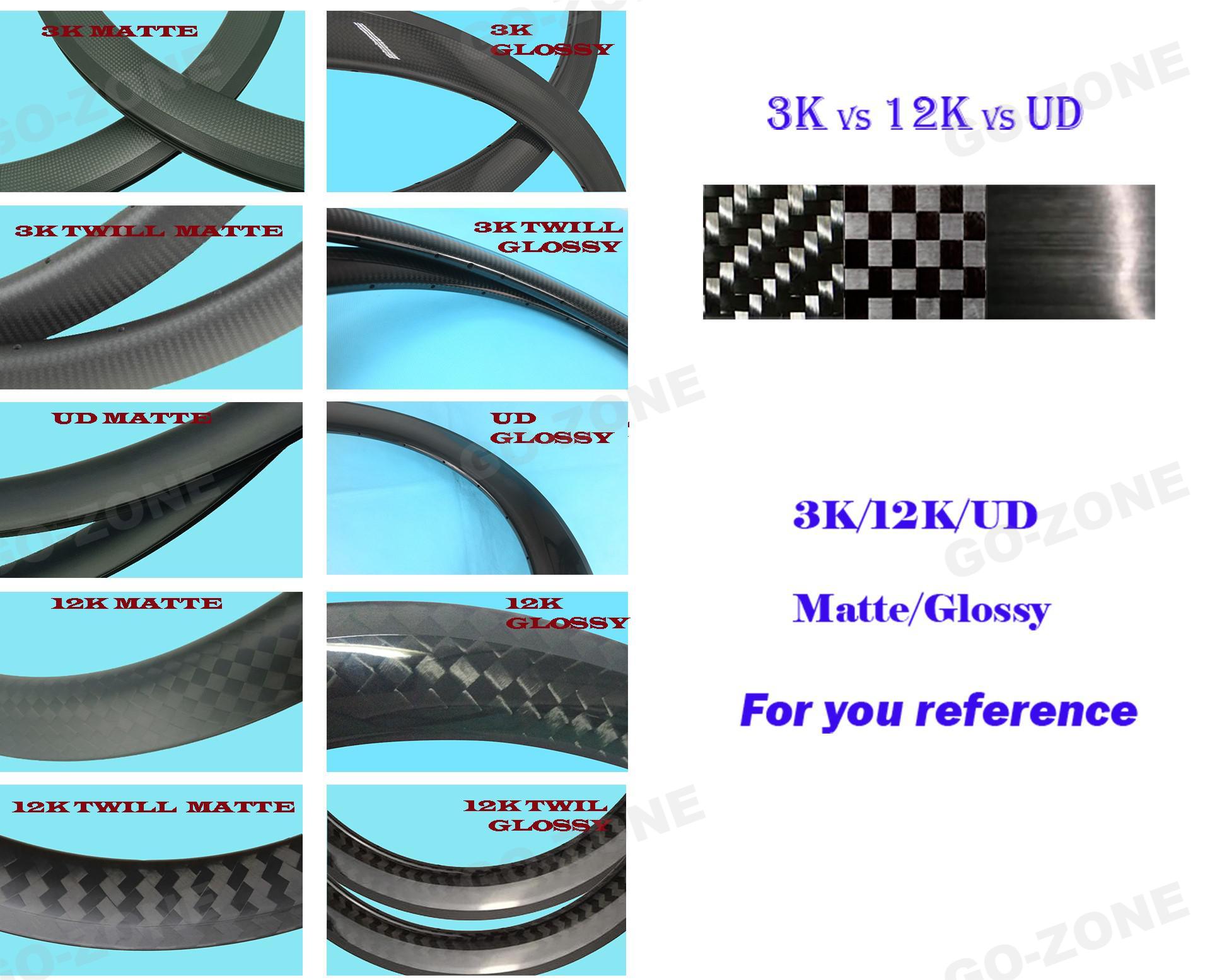

    Surface Difference


    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 15


    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 16

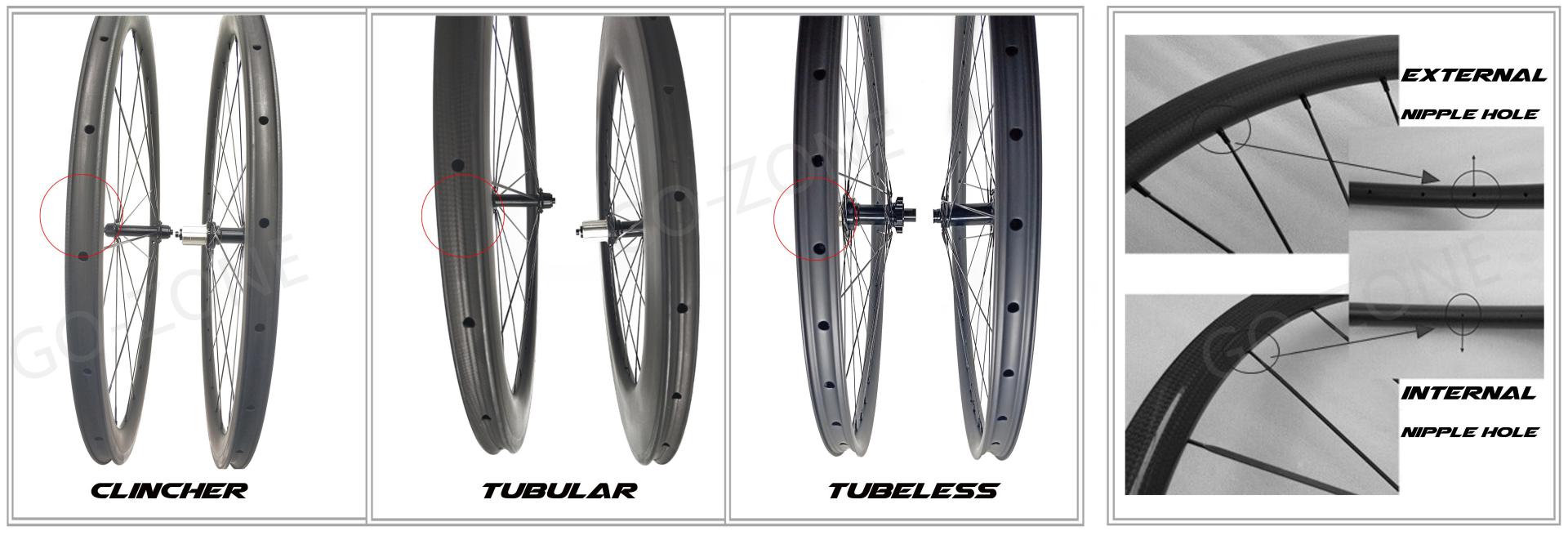

    Clincher & Tubular & Tubeless / External nipple & Internal nipple


    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 17

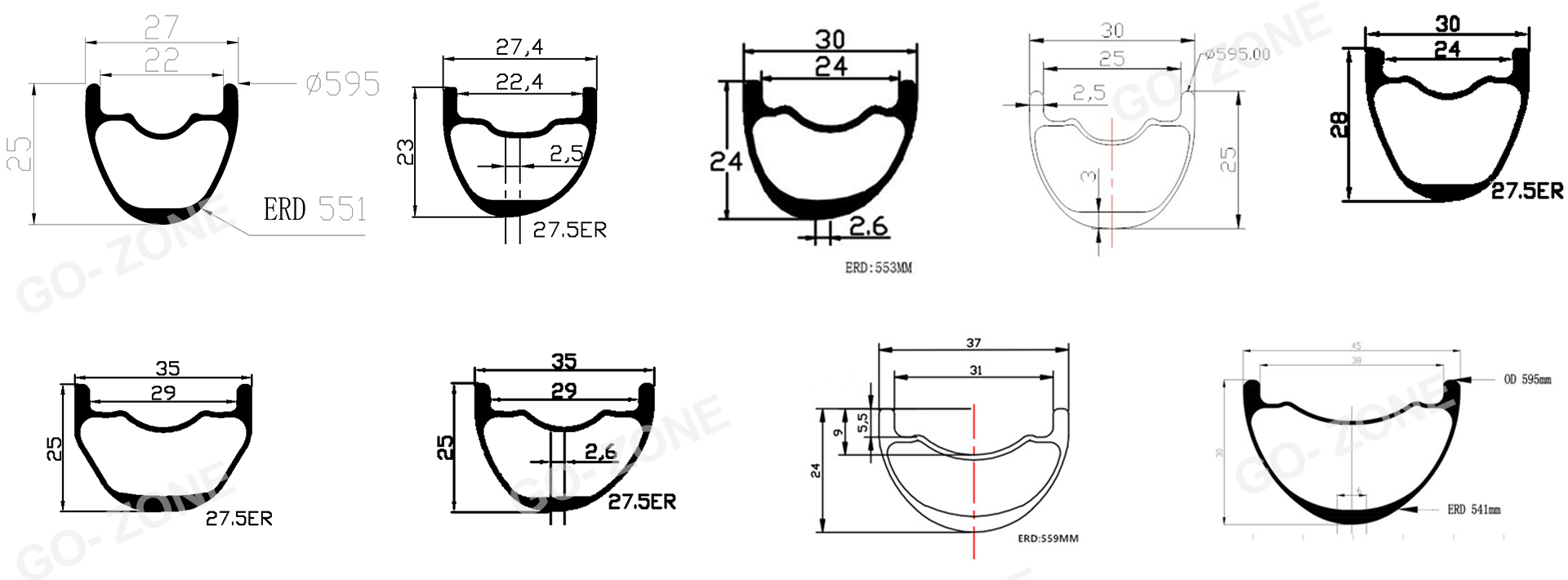

    27.5er MTB Rim Sizes For Reference Or OEM Mould


    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 18

    Some Of The MTB Hubs: make the wheels with the below hubs or as you request


    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 19

    Spokes & Nipples: make the wheels with the below spokes & nippless or as you request


    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 20

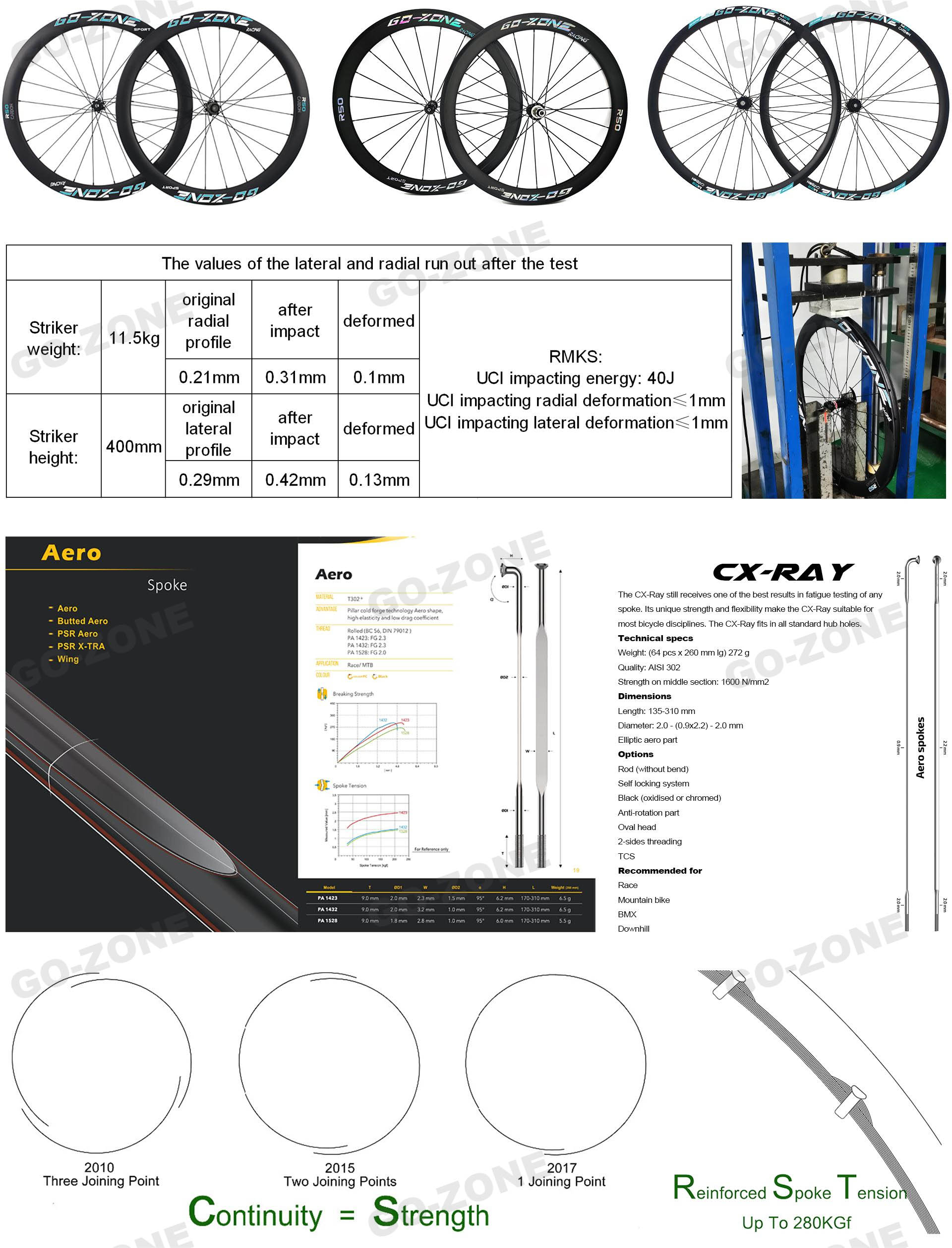

    Certification:SGS(ISO 4210:2015) & UCI Approved


    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 21
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 22
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 23


    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 24
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 25
    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 26


    Advantage

    27.5er carbon mtb wheelset clincher tubeless hope pro4 carbon mtb wheelset 27.5 QR/TA/BOOST carbon mtb wheels 27
