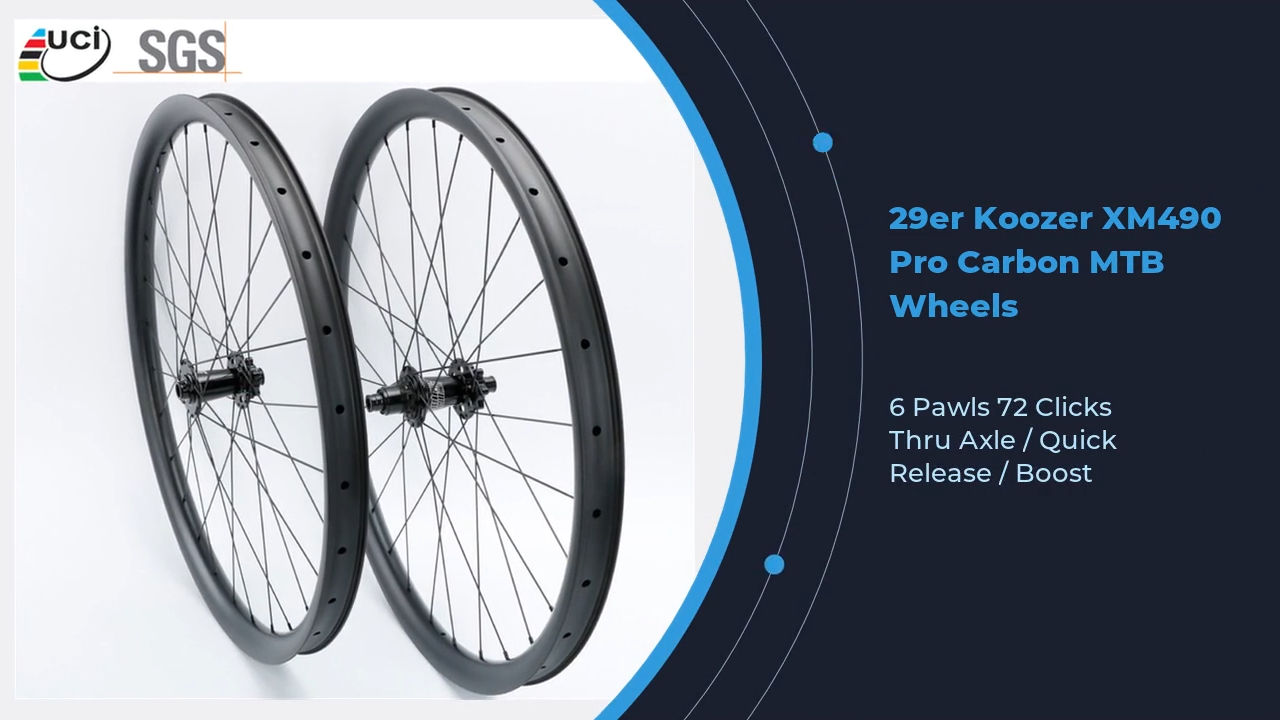

29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 1
29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 1

29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset

OEM & ODM 29er Carbon MTB Wheels Koozer XM490 Pro 6 Bolts Thru Axle / Quick Release / Boost 72 Clicks 6 Pawls big sounds AM Wheelset Factory Suppliers

1. 6 Pawls 72 Clicks

    Thru Axle / Quick Release / Boost

2. UD/3K/3k twill/12K/12k twill...  Matte / Glossy

3. Clincher Tubeless

Toray T800 Carbon

4.  Disc Brake

28/28 Holes (Or Customized)

5. Spokes: Pillar / Gozone / Sapim...

6. Nipples: Black / Siver / Red / Blue...

7. SGS(ISO) / UCI Approved OEM & ODM Service

8.  Shimano / Sram XD/Shimano MS 12s

    oops...!

    no product data.

    Go to homepage

    About Go Zone

    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service. Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon super light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon super light mtb wheels, carbon fat bike wheels, carbon frames, etc. Our products have passed the EN and ISO standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, etc, and we have provided ODM & OEM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.
    Product Parameter

    OEM & ODM 29er Carbon MTB Wheels Koozer XM490 Pro 6 Bolts Thru Axle / Quick Release / Boost AM Tubeless Mountain Bicycle Wheelset Factory Suppliers



    Size :29er
    Material :Toray T800 Carbon Fiber
    Surface Finish :

    UD/3K/3k Twill/12K/12k Twill...    Matte / Glossy

    Tire Profile:Clincher Tubeless
    Width*Depth:

    Symmetry :  27*25mm/30*25mm/30*30mm/35*25mm/36*30mm/40x30mm..

    Asymmetry:  28x23mm/30*30mm/32*23mm/33*25mm/33*30mm/34*23mm/35*20mm/35*25mm/36*23mm/36*30mm/38*23mm...
    (Or Customized)
    Braking System :Disc Brake
    Spoke Holes:

    28/28 Holes

    Hubs :Koozer XM490 pro
    (Or Customized)
    Hubs Colour:Black/Rainbow...
    O.L.DThru Axle :  Front 100*15mm  / Rear 142*12mm
    Quick Release : Front 100mm / Rear 135mm
    Boost: Front 110*15mm  / Rear 148*12mm
    Spokes:Gozone 1423/Pillar 1423/Pillar 1420/Sapim cx ray...
    ( Or Customized)
    Nipple Colour:Black/Siver/Red/Blue...
    Nipple Position:External or Internal
    Cassette Body:Shimano 9/10/11S / Shimano MS 12S Or Sram XD (XX1) 11/12S
    Weight Of Wheelset :Find the details as below
    Max Tire Pressure:80psi
    Max Cyclist Weight:150kg
    Applicable Bicycle:MTB Bicycle
    Shipping:By Boat/Plane/Express
    Standard:UCI/SGS(ISO)/EN...
    Warranty :2 Years
    Place Of Origin :Xiamen,China
    Logoes Customized:Available
    OEM&ODM:Available
    Free:3 Extra Spokes(nipples),QR Skewers(only for QR)



    Weight Of Wheelset Reference(spokes with Gozone 1423 Or Pillar 1423 )

    Weight     (+/-3%)Novatec 791/792   Novatec 411/412  DT Swiss 240EXPDT Swiss 350SLDT Swiss 180EXPGO-ZONE PRO4GO-ZONE M335DFastace DH825Fastace DA206   Powerway  M42Koozer  XM490 pro

    Koozer

    XM390

    Hope Pro4

     (32/32H)

    Koozer

    XM390

    (32/32H)

    Koozer  XM490

    (32/32H)

    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    27x25MM155014501440150014101460145515701580155016401590166516501665
    28x23MM155014501440150014101460145515701580155016401590166516501665
    30x25MM158014801470153014401490148516001610158016701620169516801695
    30x30MM162015201510157014801530152516401650162017101660173517201735
    32x23MM158014801470153014401490148516001610158016701620169516801695
    33x25MM167015701560162015301580157516901700167017601710178517701785
    33x30MM173016301620168015901640163517501760173018201770184518301845
    34x23MM159014901480154014501500149516101620159016801630170516901705
    35x20MM158014801470153014401490148516001610158016701620169516801695
    35x25MM168015801570163015401590158517001710168017701720179517801795
    36x23MM160015001490155014601510150516201630160016901640171517001715
    36x30MM174016401630169016001650164517601770174018301780185518401855
    38x23MM160015001490155014601510150516201630160016901640171517001715
    40x30MM176016601650171016201670166517801790176018501800187518601875



    Weight Of Wheelset Reference(pokes with Pillar 1420 or Sapim CX Ray)


    Weight     (+/-3%)Novatec 791/792   Novatec 411/412  DT Swiss 240EXPDT Swiss 350SLDT Swiss 180EXPGO-ZONE PRO4GO-ZONE M335DFastace DH825Fastace DA206   Powerway  M42Koozer  XM490 pro   Koozer XM390

    Hope Pro4

     (32/32H)

    Koozer

    XM390

    (32/32H)

    Koozer XM490

    (32/32H)

    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    27x25MM143513351325138512951345134014551465143515251475153015151530
    28x23MM143513351325138512951345134014551465143515251475153015151530
    30x25MM146513651355141513251375137014851495146515551505156015451560
    30x30MM150514051395145513651415141015251535150515951545160015851600
    32x23MM146513651355141513251375137014851495146515551505156015451560
    33x25MM155514551445150514151465146015751585155516451595165016351650
    33x30MM161515151505156514751525152016351645161517051655171016951710
    34x23MM147513751365142513351385138014951505147515651515157015551570
    35x20MM146513651355141513251375137014851495146515551505156015451560
    35x25MM156514651455151514251475147015851595156516551605166016451660
    36x23MM148513851375143513451395139015051515148515751525158015651580
    36x30MM162515251515157514851535153016451655162517151665172017051720
    38x23MM148513851375143513451395139015051515148515751525158015651580
    40x30MM164515451535159515051555155016651675164517351685174017251740

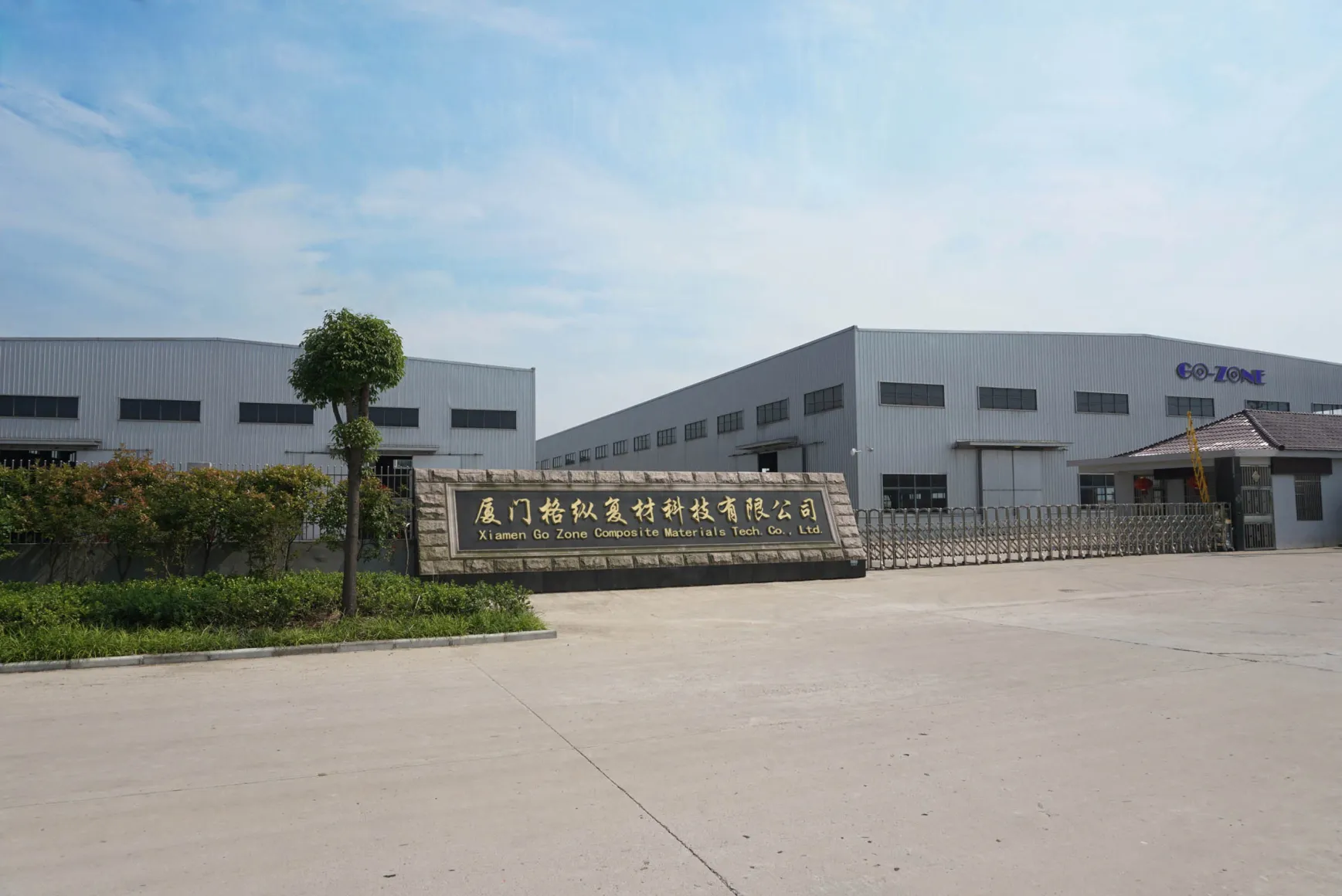

    Factory Information / OEM & ODM


    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service.

    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 2

    Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon ultra light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon ultra light mtb wheels, carbon fat bike wheels, carbon frames, Carbon Folding Bike Wheels,Carbon 12inch Children's Bike Parts,Cycling Jersey,  etc.


    Our products have passed UC I (UNION CYCLISTE INTERNATIONALE) and SGS(ISO 4210:2015) standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, North America, South America, Australia, Africa..., and we have provided OEM & ODM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.


    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 3
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 4
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 5
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 6
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 7
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 8


    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 9
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 10
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 11
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 12
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 13
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 14



    Surface Difference


    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 15

    Technology

    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 16

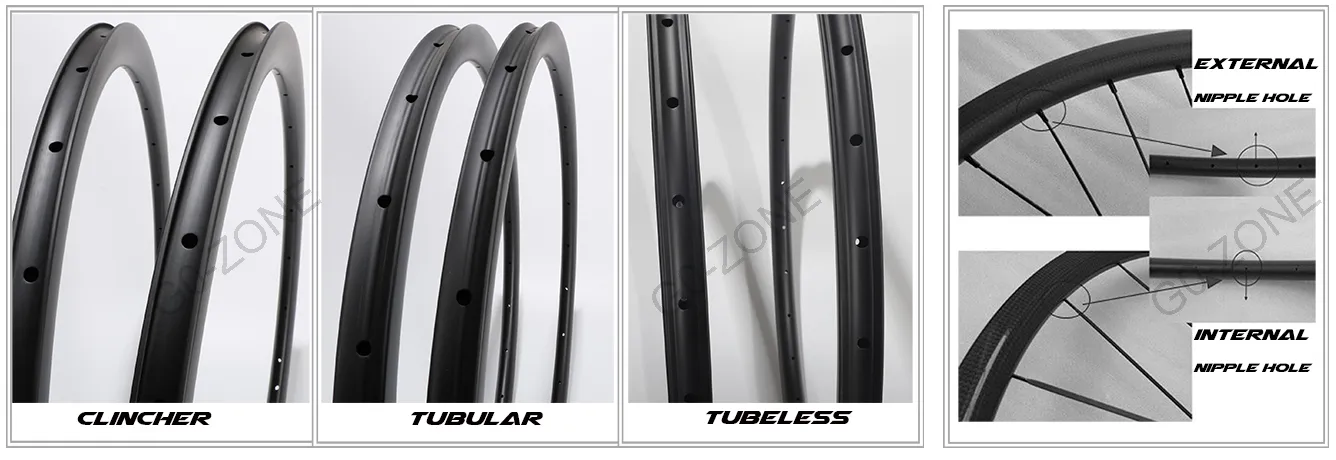

    Clincher & Tubular & Tubeless / External nipple & Internal nipple

    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 17


    29er MTB Rim Sizes For Reference Or OEM Mould

    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 18

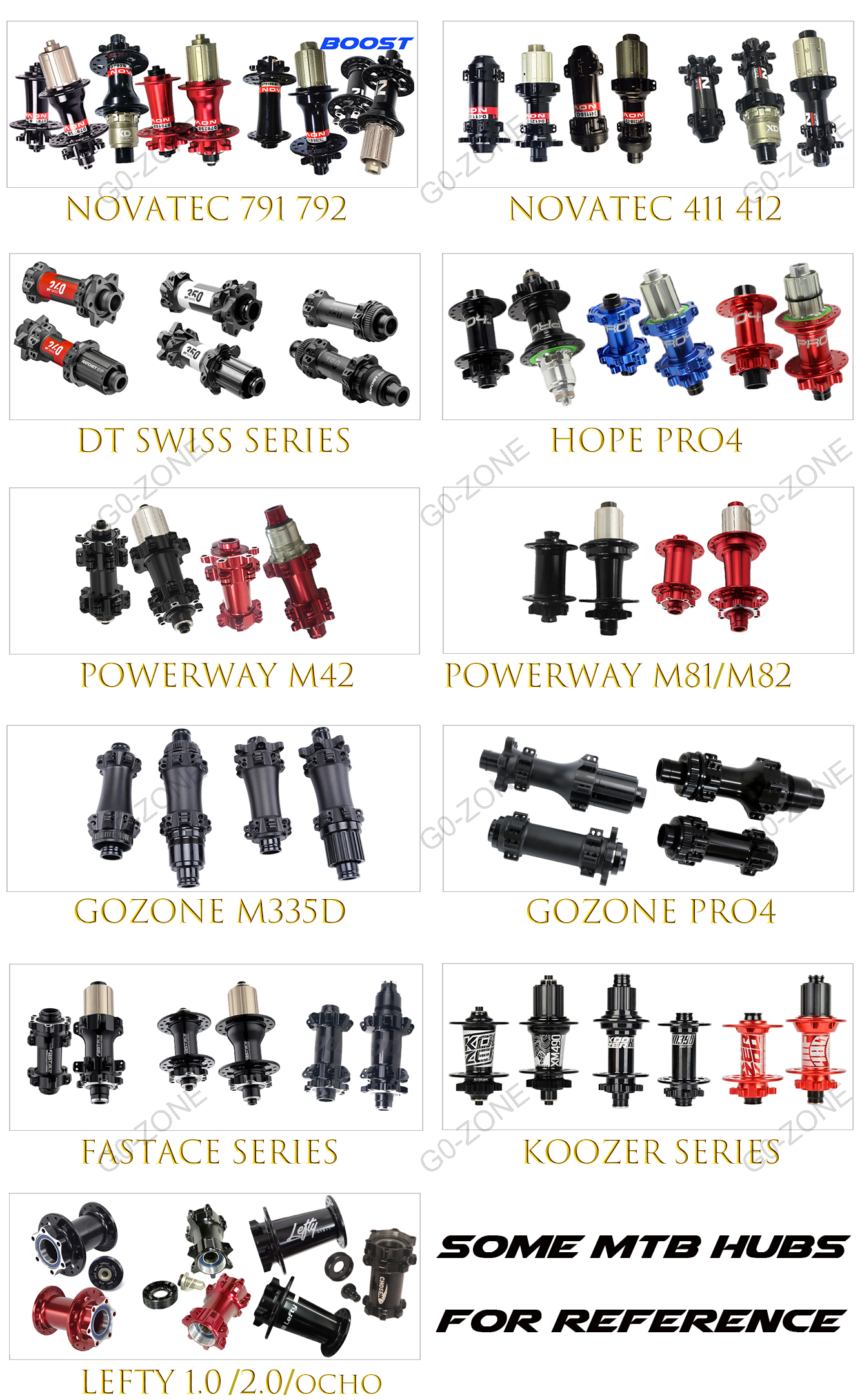

    Some Of The MTB Hubs: make the wheels with the below hubs or as you request

    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 19

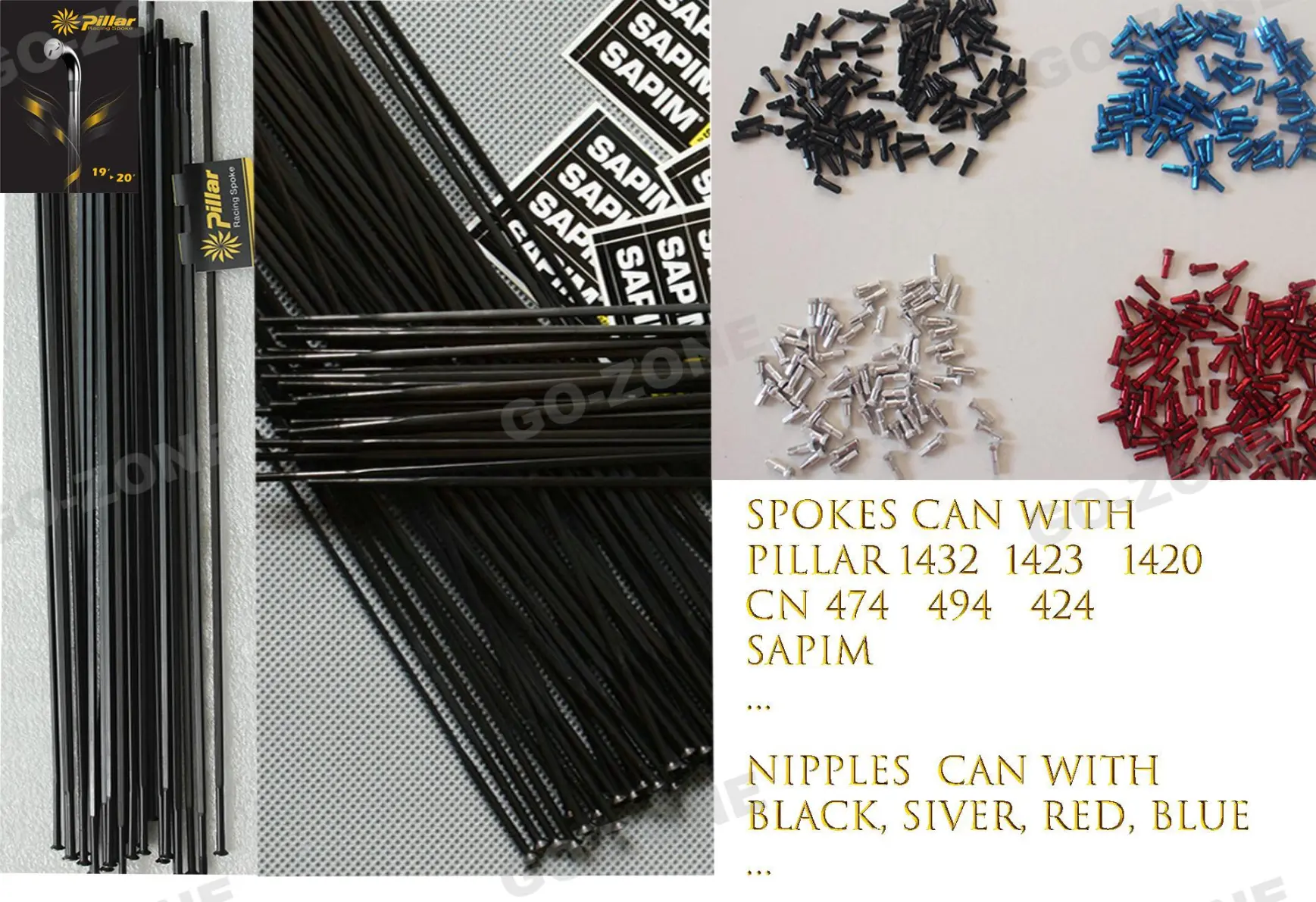

    Spokes & Nipples: make the wheels with the below spokes & nippless or as you request


    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 20

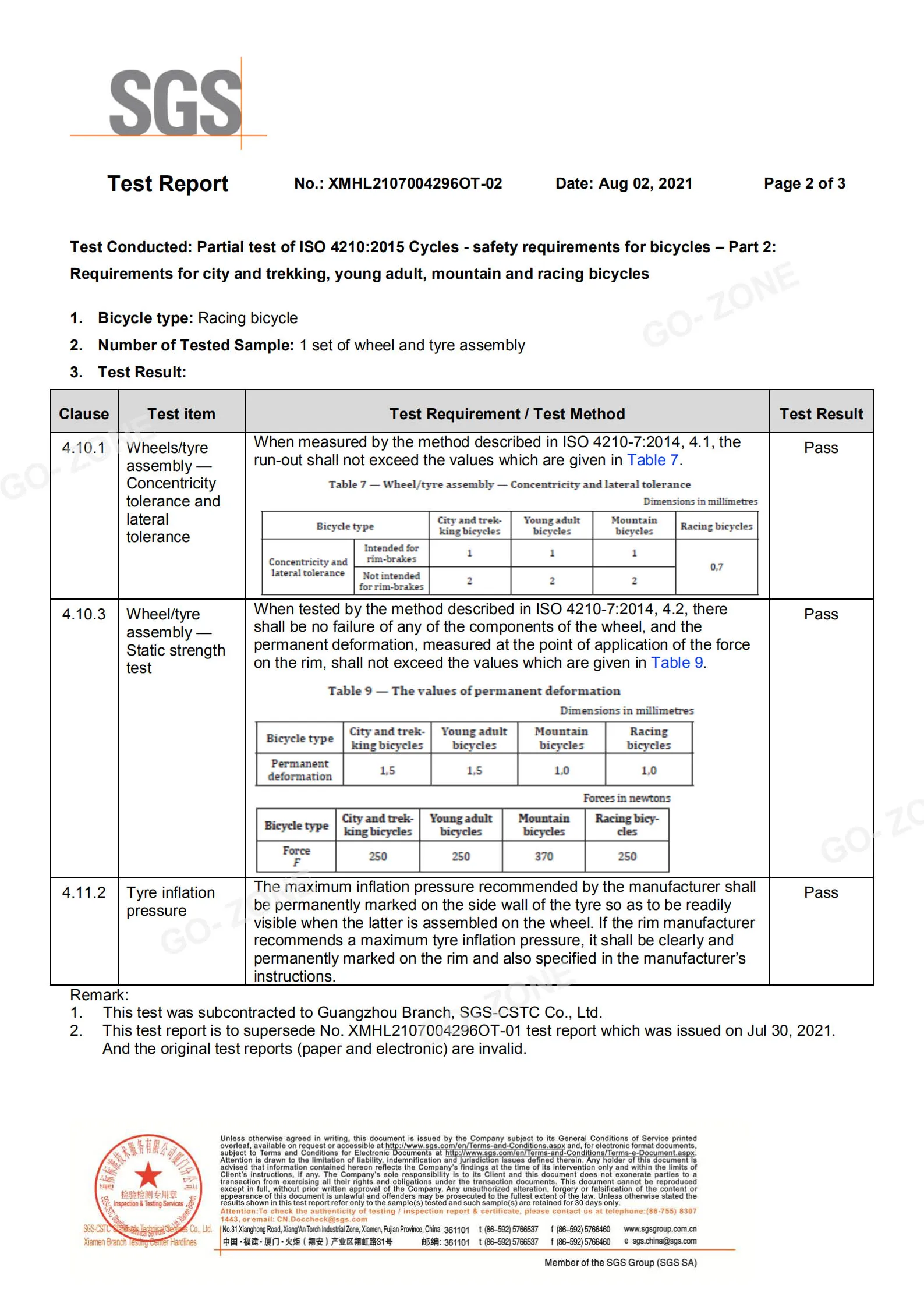

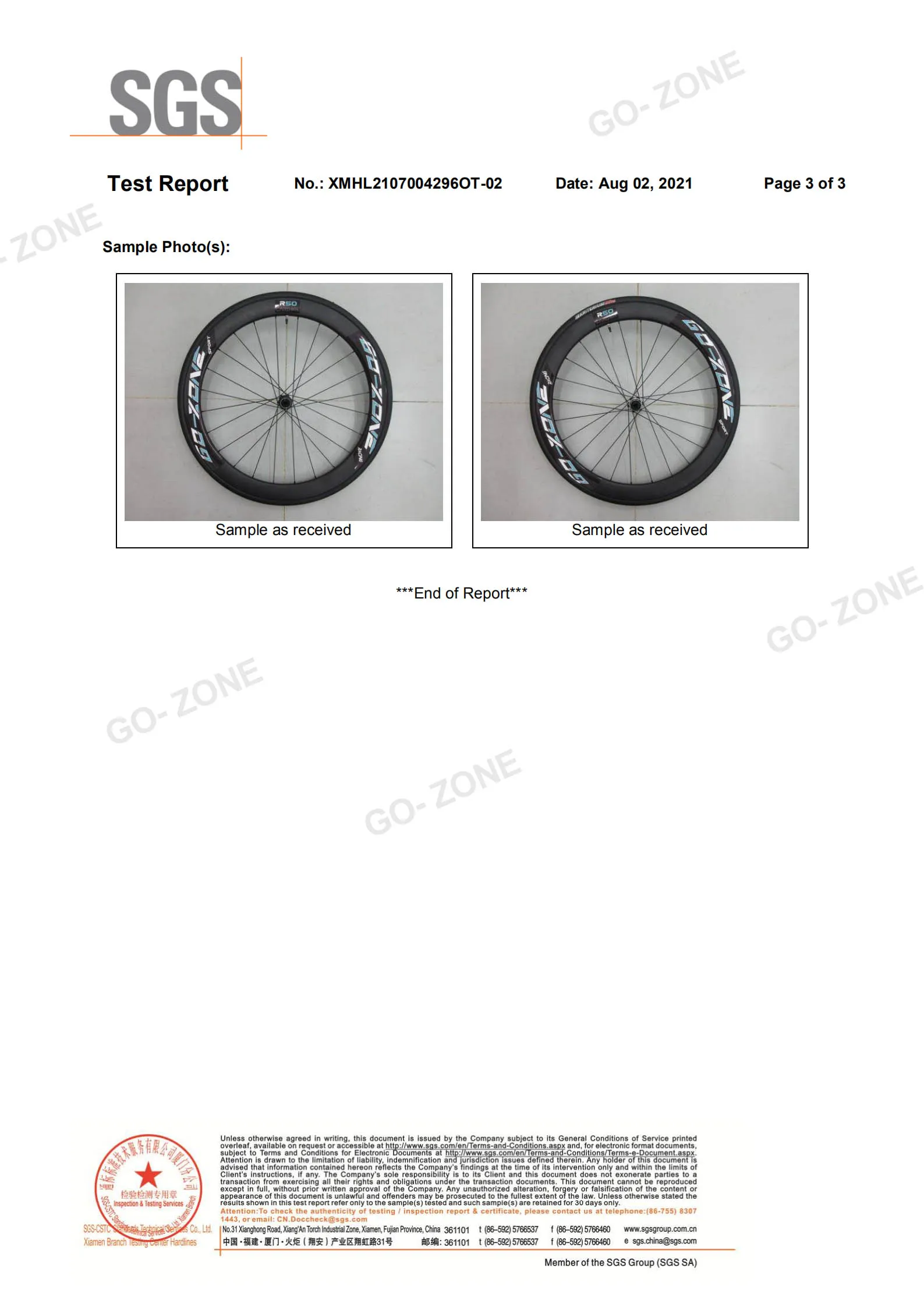

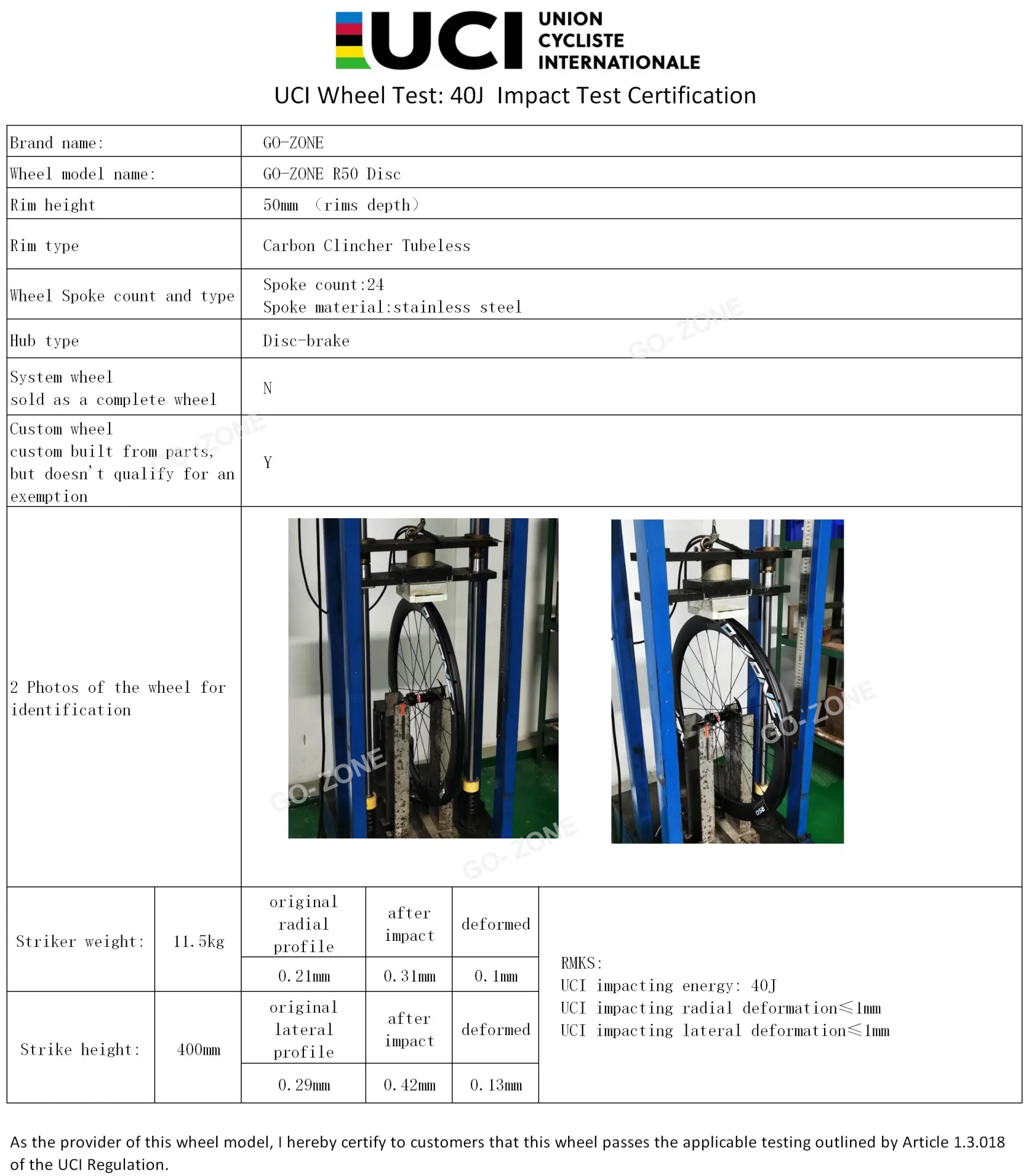

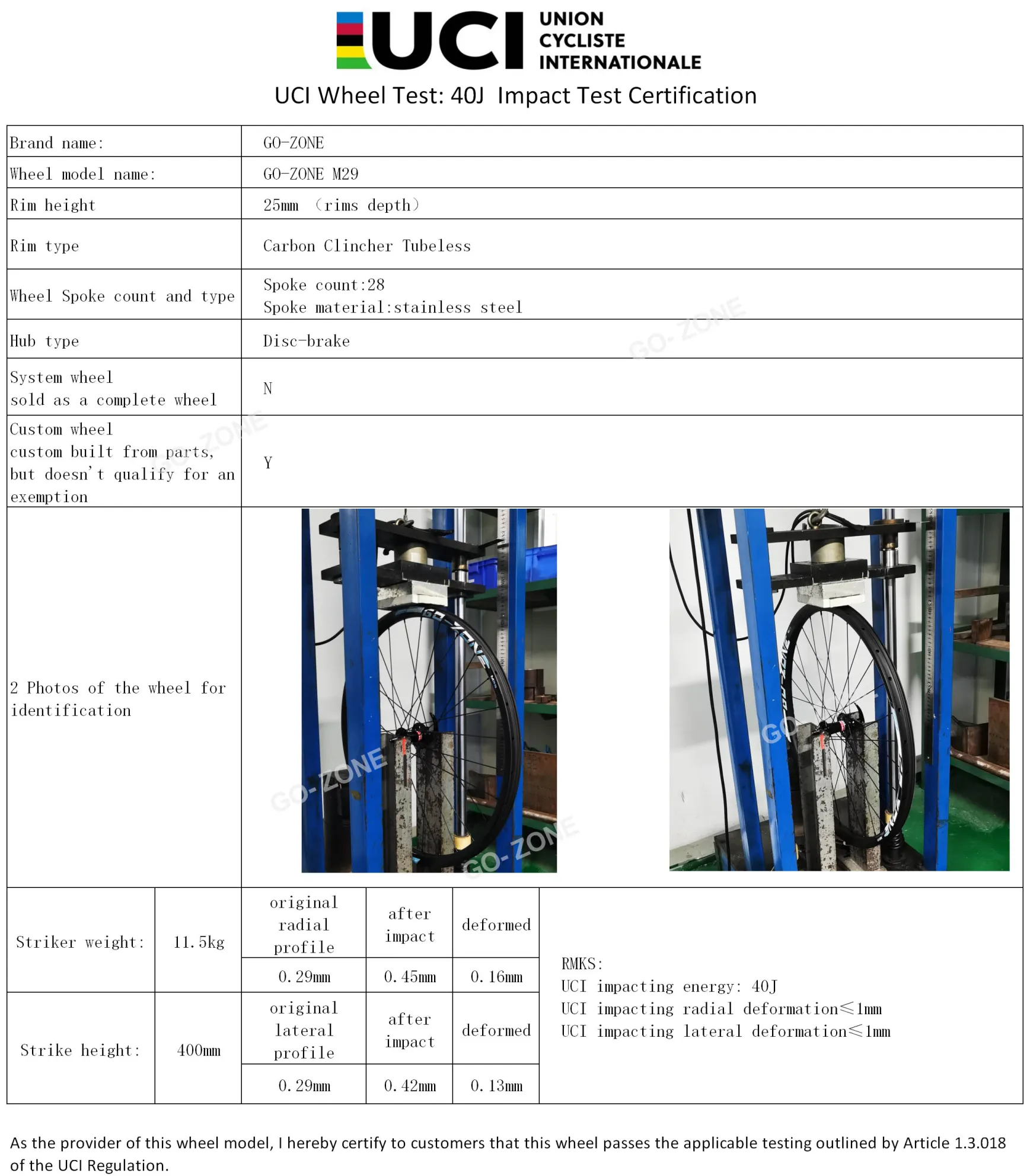

    Certification:SGS(ISO 4210:2015) & UCI Approved



    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 21
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 22
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 23



    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 24
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 25
    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 26


    Advantage

    29er Koozer XM490 Pro Carbon MTB Wheels 72 Clicks 6 Pawls AM Wheelset 27
