Go Zone Wheels - UCI approved carbon rims & wheels manufacturer with OEM/ODM services.

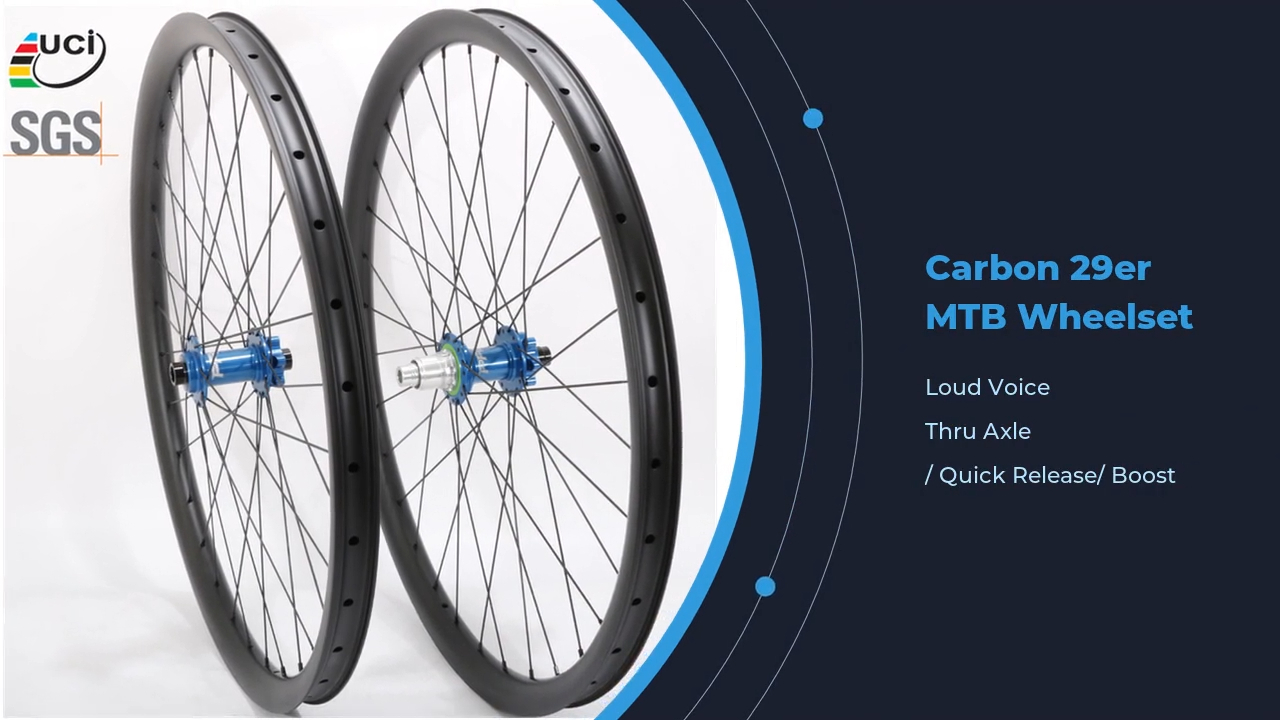

Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 1
Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 1

Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels

Factory Customized Carbon MTB Wheelset 29 Hope Pro4 Thru Axle / Boost / Quick Release 29er MTB Wheels Clincher Tubeless UCI Quality OEM / ODM Mountain Bicycles Wheels 29"


    oops...!

    no product data.

    Go to homepage


    Product Parameter

    Factory Customized Carbon MTB Wheelset 29 Hope Pro4 Thru Axle / Boost / Quick Release 29er MTB Wheels Clincher Tubeless UCI Quality OEM / ODM Mountain Bicycles Wheels 29"


    Size :29er
    Material :Toray T800 Carbon Fiber
    Surface Finish :

    UD/3K/3k Twill/12K/12k Twill...    Matte / Glossy

    Tire Profile:Clincher Tubeless
    Width*Depth:

    Symmetry :  27*25mm/30*25mm/30*30mm/32*28mm/35*25mm/36*30mm/40x30mm..

    Asymmetry: 28.6*22mm/30*30mm/33*25mm/33*30mm/34*23mm/35*25mm/36*23mm/36*30mm/39*27mm...
    (Or Customized)
    Braking System :Disc Brake
    Spoke Holes:

    28/28 Holes(32/32H is available)

    Hubs :Hope Pro4
    (Or Customized)
    Hubs Colour:Black/Red/Blue...
    O.L.DThru Axle :  Front 100*15mm  / Rear 142*12mm
    Quick Release : Front 100mm / Rear 135mm
    Boost: Front 110*15mm  / Rear 148*12mm
    Spokes:Pillar 1423/Pillar 1420/CN 474/CN 424/Sapim cx ray
    ( Or Customized)
    Nipple Colour:Black/Siver/Red/Blue...
    Nipple Position:External or Internal
    Cassette Body:Shimano 9/10/11S / Shimano MS 12S / Sram XD (XX1) 11/12S
    Weight Of Wheelset :Find the details as below
    Max Tire Pressure:80psi
    Max Cyclist Weight:150kg
    Applicable Bicycle:MTB Bicycle
    Shipping:By Boat/Plane/Express
    Standard:UCI/SGS(ISO)/EN...
    Warranty :2 Years
    Place Of Origin :Xiamen,China
    Logoes Customized:Available
    OEM&ODM:Available
    Free:3 Extra Spokes(nipples),QR Skewers(only for QR)



    Weight Of Wheelset Reference(spokes with pillar 1423 or CN 474)

    Weight     (+/-3%)

    Novatec

    791/792

    Novatec

    411/412

    DT Swiss

    240EXP

    DT Swiss

    350SL

    Powerway

    M42

    Powerway  M81Powerway  M82

    GO-ZONE

    PRO4

    Fastace DH825Fastace DA206

    Hope Pro4

    (32/32H)

    Koozer

    XM390

    (32/32H)

    Koozer

    XM490

    (32/32H)

    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    27x25MM1560146014501510156015801610147015801590167516051675
    28.6x22MM1510141014001460151015301560142015301540162515551625
    30x25MM1570147014601520157015901620148015901600168516151685
    30x30MM1610151015001560161016301660152016301640172516551725
    32x28MM1570147014601520157015901620148015901600168516151685
    33x25MM1570147014601520157015901620148015901600168516151685
    33x30MM1720162016101670172017401770163017401750183517651835
    34x23MM1580148014701530158016001630149016001610169516251695
    35x25MM1670157015601620167016901720158016901700178517151785
    36x23MM1590149014801540159016101640150016101620170516351705
    36x30MM1730163016201680173017501780164017501760184517751845
    39x27MM1660156015501610166016801710157016801690177517051775
    40x30MM1750165016401700175017701800166017701780186517951865




    Weight Of Wheelset Reference(spokes with spokes with pillar 1420 or CN 424 or sapim)

    Weight     (+/-3%)

    Novatec

     791/792

    Novatec 411/412  DT Swiss 240EXPDT Swiss 350SLPowerway  M42Powerway  M81Powerway  M82

    GO-ZONE

     PRO4

    Fastace

    DH825

    Fastace

    DA206

    Hope Pro4

     (32/32H)

    Koozer XM390

    (32/32H)

    Koozer XM490

    (32/32H)

    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    27x25MM1460136013501410146014801510137014801490156014901560
    28.6x22MM1410131013001360141014301460132014301440151014401510
    30x25MM1470137013601420147014901520138014901500157015001570
    30x30MM1510141014001460151015301560142015301540161015401610
    32x28MM1470137013601420147014901520138014901500157015001570
    33x25MM1470137013601420147014901520138014901500157015001570
    33x30MM1620152015101570162016401670153016401650172016501720
    34x23MM1480138013701430148015001530139015001510158015101580
    35x25MM1570147014601520157015901620148015901600167016001670
    36x23MM1490139013801440149015101540140015101520159015201590
    36x30MM1630153015201580163016501680154016501660173016601730
    39x27MM1560146014501510156015801610147015801590166015901660
    40x30MM1650155015401600165016701700156016701680175016801750




    Factory Information / OEM & ODM


    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service.

    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 2

    Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon ultra light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon ultra light mtb wheels, carbon fat bike wheels, carbon frames, Carbon Folding Bike Wheels,Carbon 12inch Children's Bike Parts,Cycling Jersey,  etc.


    Our products have passed UC I (UNION CYCLISTE INTERNATIONALE) and SGS(ISO 4210:2015) standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, North America, South America, Australia, Africa..., and we have provided OEM & ODM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.


    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 3
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 4
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 5
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 6
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 7
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 8


    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 9
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 10
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 11
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 12
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 13
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 14



    Surface Difference


    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 15

    Technology

    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 16





    Clincher & Tubular & Tubeless / External nipple & Internal nipple

    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 17


    29er MTB Rim Sizes For Reference Or OEM Mould

    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 18


    Some Of The MTB Hubs: make the wheels with the below hubs or as you request

    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 19


    Spokes & Nipples: make the wheels with the below spokes & nippless or as you request


    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 20


    Certification:SGS(ISO 4210:2015) & UCI Approved



    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 21
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 22
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 23



    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 24
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 25
    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 26


    Advantage

    Carbon MTB Wheelset 29 Hope Pro4 29er TA / QR / Boost MTB Wheels 27
