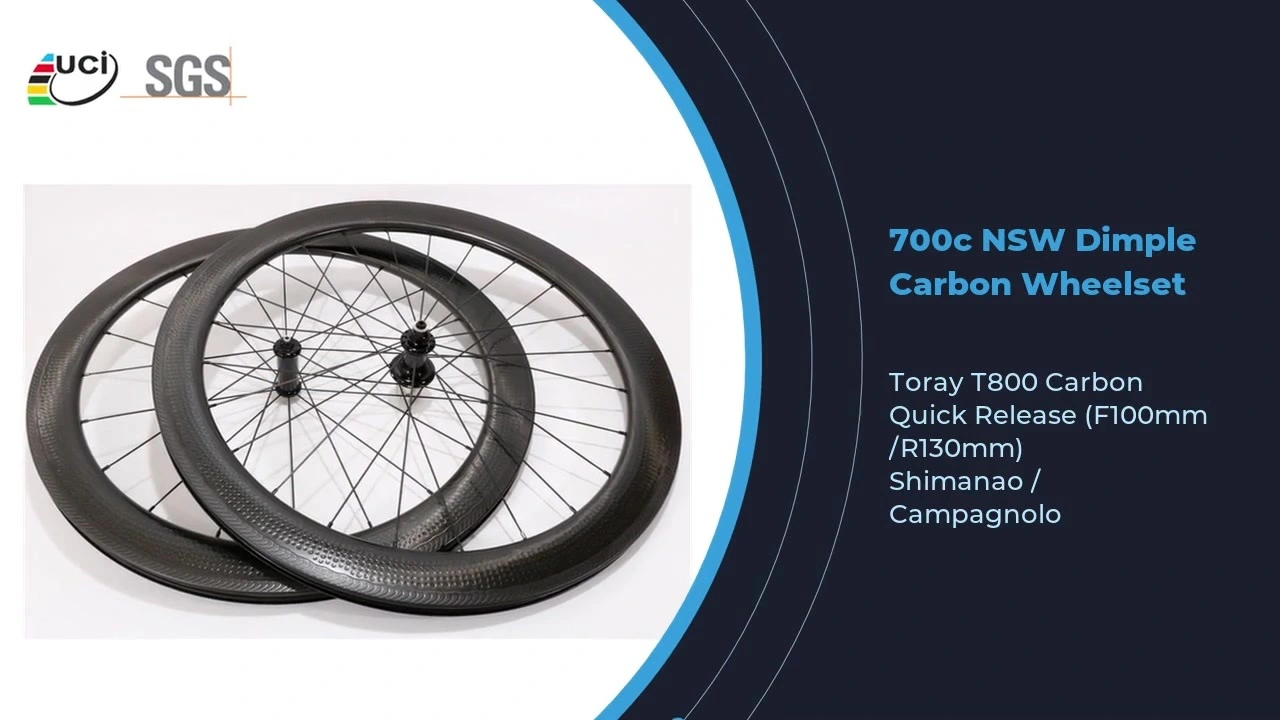

    Wholesale OEM / ODM 700C Carbon NSW Dimple Wheels UCI Quality Rim ( V ) Brake Road Wheelset Clincher Tubeless / Clincher / Tubular Factory Manufacturers

    Product Parameter


    Size :700c
    Material :Toray T800 Carbon Fiber
    Surface Finish :

    NSW Dimple

    Tire Profile:Clincher Tubeless / Clincher Tubular
    Width:

    26mm

    Depth58mm
    Braking System :Rim(V) Brake
    Spoke Holes:

    20/24 Holes (Or Customized)

    Hubs : / Novatec / Powerway / DT Swiss / Koozer...
    (Or Customized)
    Hubs Colour:As photos
    O.L.DThru Axle :  Front 100  / Rear 130mm
    Spokes:Pillar 1432/Pillar 1420/CN 494/CN 424/Sapim cx ray
    ( Or Customized)
    Nipple Colour:Black/Siver/Red/Blue...
    Nipple Position:External or Internal
    Cassette Body:Shimano 9/10/11S /  Camp. 10/11S
    Weight Of Wheelset :Find the details as below
    Max Tire Pressure:130psi
    Max Cyclist Weight:150kg
    Applicable Bicycle:Road Bicycle
    Shipping:By Boat/Plane/Express
    Standard:UCI/SGS(ISO)/EN...
    Warranty :2 Years
    Place Of Origin :Xiamen,China
    Logoes Customized:Available
    OEM&ODM:Available
    Free:3 Extra Spokes(nipples),QR Skewers, Brake Pads



    Weight Of Wheelset Reference(spokes with pillar 1423 or CN 474)


    Weight            (+/-3%)Novatec 271 372Novatec 291/482   (SL)Novatec 511/522Powerway  R13Powerway  R36DT Swiss 240EXPDT Swiss 350  DT Swiss 180Koozer RS270Koozer RS330

    ChosenAS

    P1586/7187

    Bitex RAF10 RAR9
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    Clincher Tubeless1745
    16551660165516751685174516401640169516551625
    Clincher 1745
    16551660165516751685174516401640169516551625
    Tubular160515151520151515351545160515001500155515151485



    Weight Of Wheelset Reference(spokes with spokes with pillar 1420 or CN 424 or sapim)

    Weight            (+/-3%)Novatec 271 372Novatec 291/482   (SL)Novatec 511/522Powerway  R13Powerway  R36DT Swiss 240EXPDT Swiss 350  DT Swiss 180Koozer RS270Koozer RS330

    ChosenAS

    P1586/7187

    Bitex RAF10 RAR9
    (g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)(g/pair)
    Clincher Tubeless1665
    15751580157515951605166515601560161515751545
    Clincher 1665
    15751580157515951605166515601560161515751545
    Tubular152514351440143514551465152514201420147514351405


    Factory Information / OEM & ODM


    Xiamen Go Zone Compsoite Materials Co., Ltd. is specialized in development, manufacturing, and selling of carbon bike parts. With more than 15 years experience, our products are famous for good quality and service.

    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 2

    Our carbon materials are Toray T700 and T800 which are imported from Japan. In pursuit of more perfect quality, our products all with high temperature resistant materials can make the brake surface good performance. Our products range from carbon road rims, carbon road disc rims, carbon dimple rims, carbon alloy rims, carbon ultra light road rims, carbon mtb rims, carbon ultra light mtb rims, carbon fat bike rims, carbon road wheels, carbon road disc wheels, carbon dimple wheels, carbon alloy wheels, carbon ultra light road wheels, carbon mtb wheels, carbon ultra light mtb wheels, carbon fat bike wheels, carbon frames, Carbon Folding Bike Wheels,Carbon 12inch Children's Bike Parts,Cycling Jersey,  etc.


    Our products have passed UC I (UNION CYCLISTE INTERNATIONALE) and SGS(ISO 4210:2015) standard test . We do domestic and international orders, retail and wholesale businesses. Our products are well sold to USA, Europe, Asia, North America, South America, Australia, Africa..., and we have provided OEM & ODM services for many famous brands in the world. We warmly welcome all the clients to come to our factory for visit and business. Our company's principle is: Quality First, Client Focus, Unique Design, Elaborate Work, Win-win Cooperation.


    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 3
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 4
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 5
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 6
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 7
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 8


    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 9
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 10
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 11
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 12
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 13
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 14



    Technology

    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 15





    Clincher & Tubular & Tubeless / External nipple & Internal nipple

    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 16

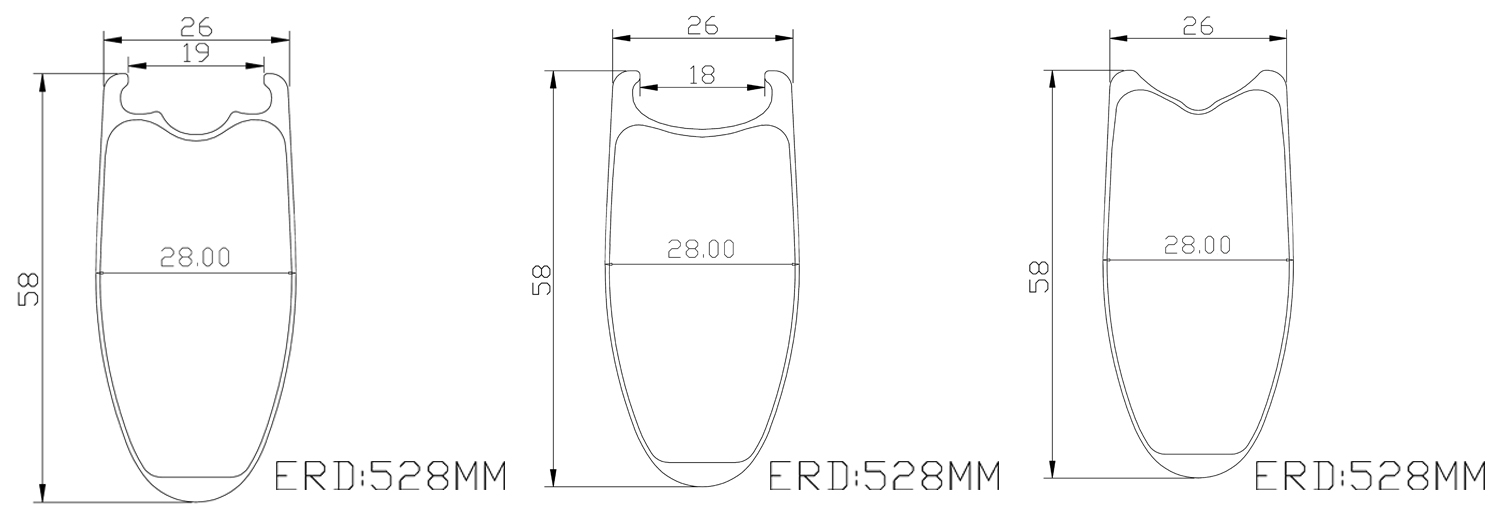

    Rim Sizes For Reference Or OEM Mould


    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 17

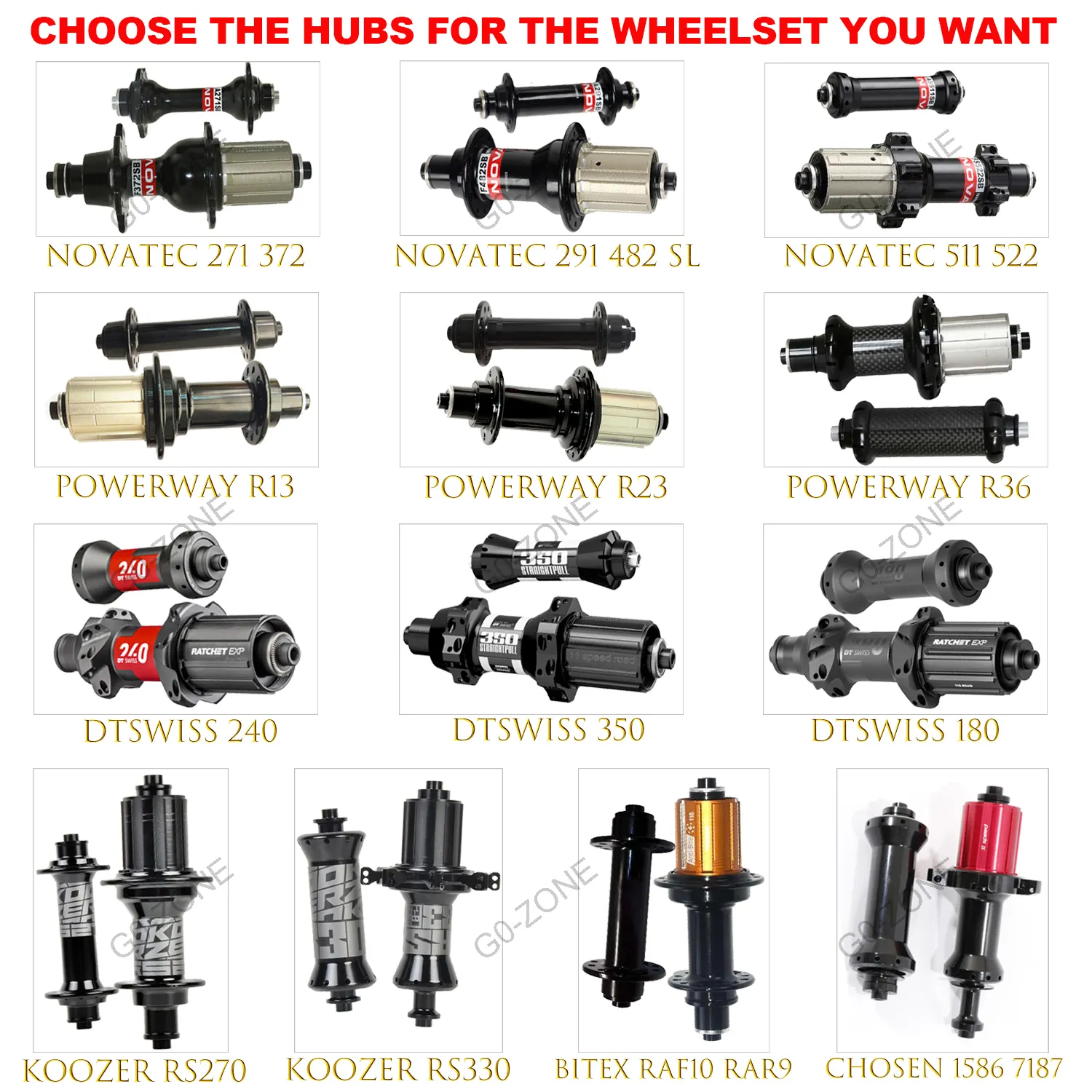

    Some Of The Road Hubs: make the wheels with the below hubs or as you request

    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 18


    Spokes & Nipples: make the wheels with the below spokes & nippless or as you request


    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 19


    Certification:SGS(ISO 4210:2015) & UCI Approved



    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 20
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 21
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 22



    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 23
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 24
    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 25


    Advantage

    OEM Carbon NSW Dimple Wheels 700C Road Rim Brake Wheelset Factory Manufacturers 26
